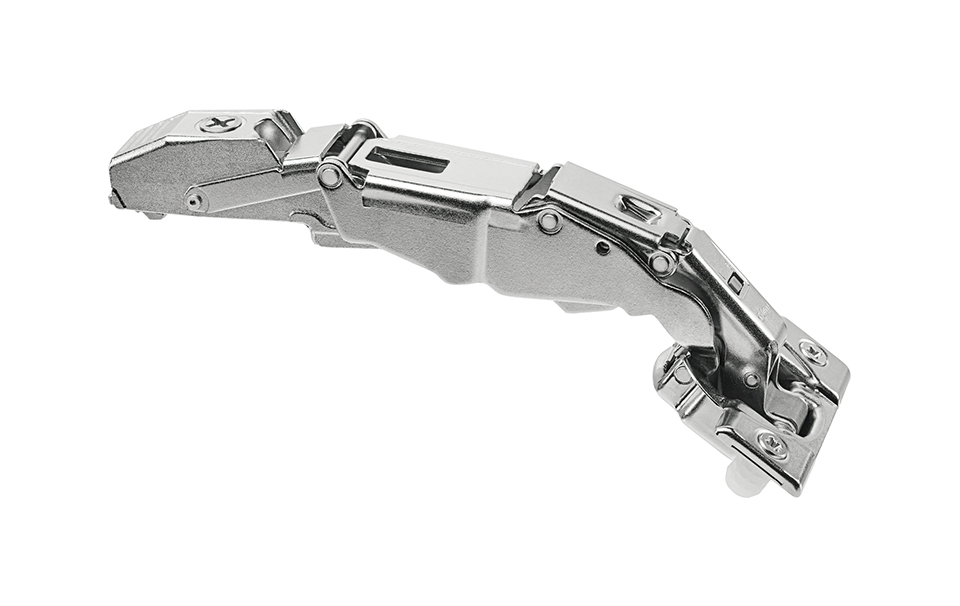

BLUM 71B7580D overlay,zero overlap,thicker door,with Blumotion,for press. 125°
Product range code
347948
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Hinge 125 ° with zero overlap (when opened to 90 °, the front is raised outside the inner profile of the body by 1.7 mm - suitable for food cabinets). Basic washers: others see. Blum screw 173L6100 - 12306, euro 173L8100 - 12318, eccentric adjusting 173H7100 - 12340, expando 174E6100.01 - 12302.
Parameters
| Parameter | Value |
|---|---|
| Angle of opening | 125 |
| Mounting into material | Dowel |
| Mounting on washer | To jam |
