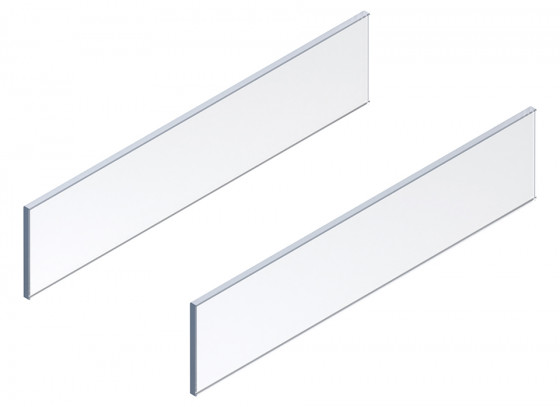

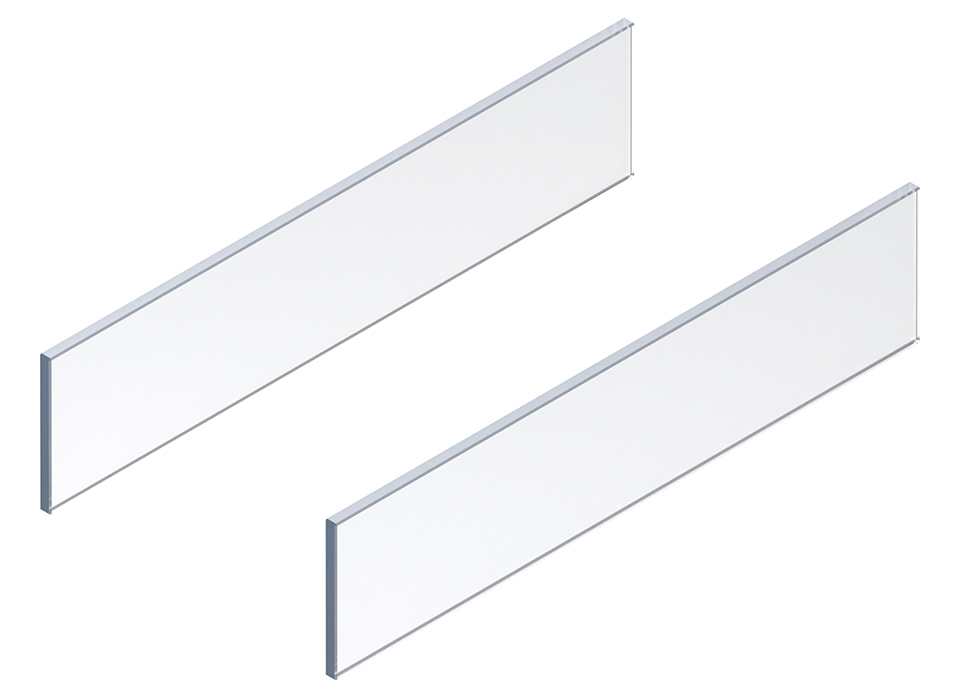

BLUM ZE4M360G side glass MERIVOBOX clear 450
Length of glass L according to nominal length of slides => L = NL - 90mm.
Glass dimension for manufacturing at the glazier => L x 95 x 8 mm. Glass does not need to be hardened/tempered, just grind the edges.
Lengths of BLUM side glass supplied for Merivobox (height = 95mm / thickness = 8mm):
NL450 => L = 360mm
NL500 => L = 410mm
NL550 => L = 460mm
NL600 => L = 510mm
Required length of side glass L for slides < NL450 and how to obtain such glass:
NL270 => L = 180mm ... for 2 NL270 drawers use one set of NL450 glass ( 0mm remaining)
NL300 => L = 210mm ... for 2 NL300 drawers use one set of NL550 glass (40mm remaining)
NL350 => L = 260mm ... for 1 NL350 drawer use one set of NL450 glass (100mm residue)
NL400 => L = 310mm ... for 1 NL400 drawer use one set of NL450 glass (50mm leftovers)
