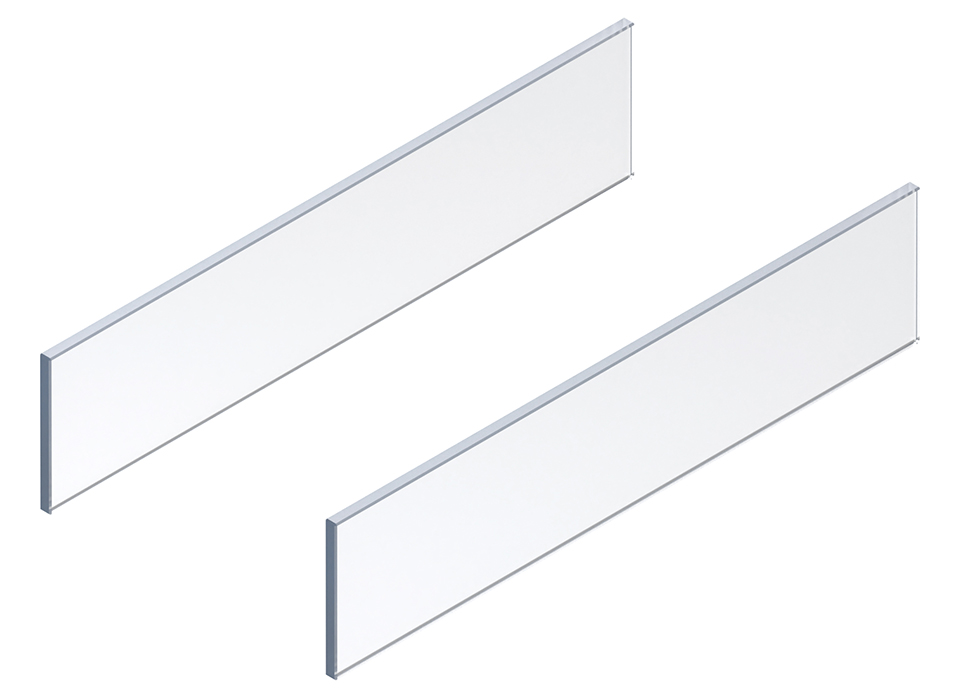

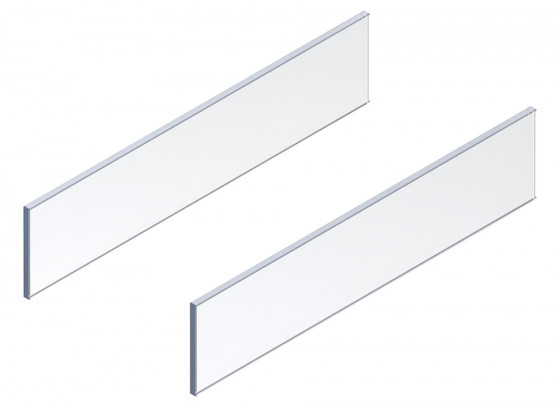

BLUM ZE4M460G side glass MERIVOBOX clear 550

Product range code 481699
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Base price per pair
16,2899 EUR 19,7108 EUR incl. VAT
> S In stock
Buy
Brand
Blum
Group code
1020050902
Unit (piece)
pair
Divisibility
1 pair
Packaging
1 pair
Description and parameters

Length of glass L according to nominal length of slides => L = NL - 90mm.
Glass dimension for manufacturing at the glazier => L x 95 x 8 mm. Glass does not need to be hardened/tempered, just grind the edges.

Lengths of BLUM side glass supplied for Merivobox (height = 95mm / thickness = 8mm):
NL450 => L = 360mm
NL500 => L = 410mm
NL550 => L = 460mm
NL600 => L = 510mm

Required length of side glass L for slides < NL450 and how to obtain such glass:
NL270 => L = 180mm ... for 2 NL270 drawers use one set of NL450 glass ( 0mm remaining)
NL300 => L = 210mm ... for 2 NL300 drawers use one set of NL550 glass (40mm remaining)
NL350 => L = 260mm ... for 1 NL350 drawer use one set of NL450 glass (100mm residue)
NL400 => L = 310mm ... for 1 NL400 drawer use one set of NL450 glass (50mm leftovers)
