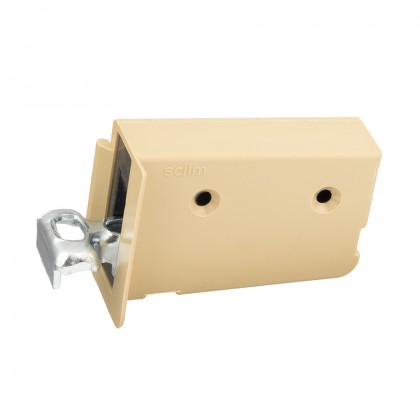

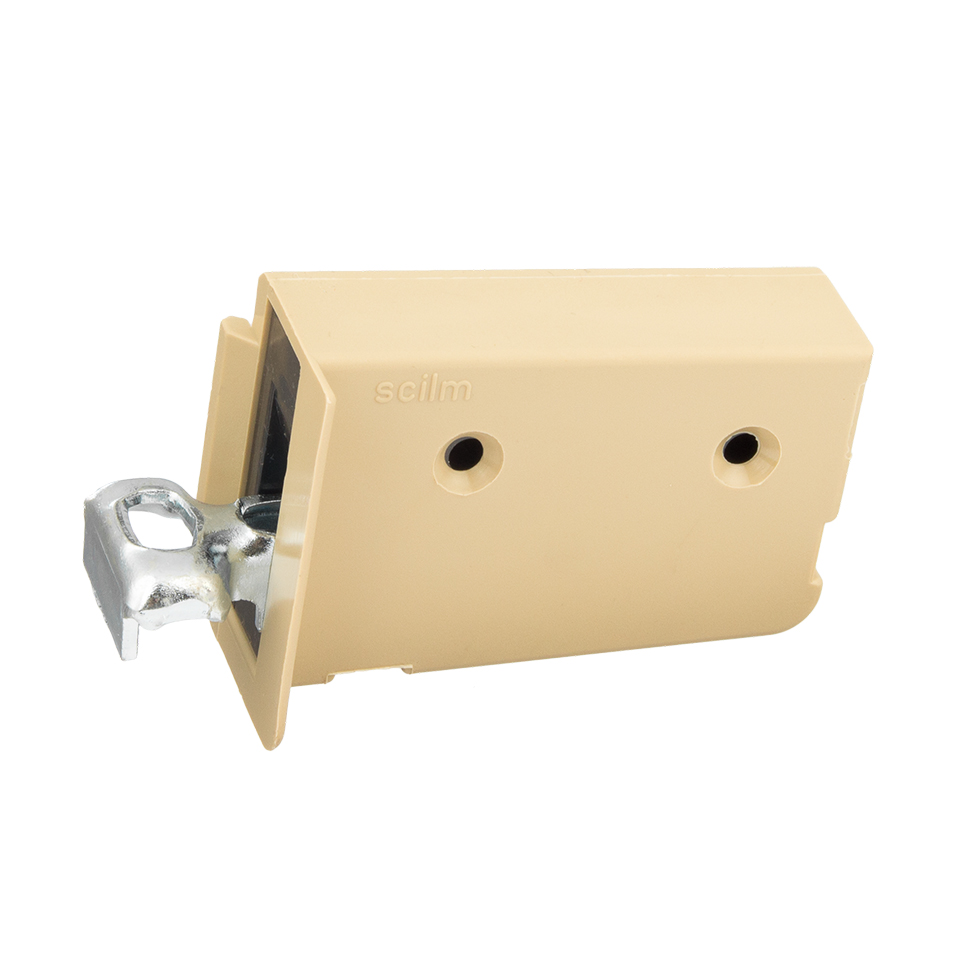

Cabinet hanger Scilm beech right
Product range code
10910
Special offer
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
SCILM (Italy) suspension fittings for upper suspended bodies. Mounting with screws on the side of the body. Load capacity 70 kg/piece (140 kg/pair). The maximum load capacity is affected by the fixing of the fittings to the body and the fixing of the hanging counter/bar to the wall.
Regulation in the direction from top to bottom +/- 10mm. Regulation perpendicular to the wall +/- 10mm. Lateral regulation by shifting on the hanging counter. Suitable counterpart 100236, possibly + fixing bar 82780 or 82780R.
Hinge body plastic (PC+ABS), outer colored plastic shell (PA6), hinge and screws galvanized steel.
Design (right/left) and color see product name.
Related documents
OtherParameters
| Parameter | Value |
|---|---|
| Mounting into material | Screw |
