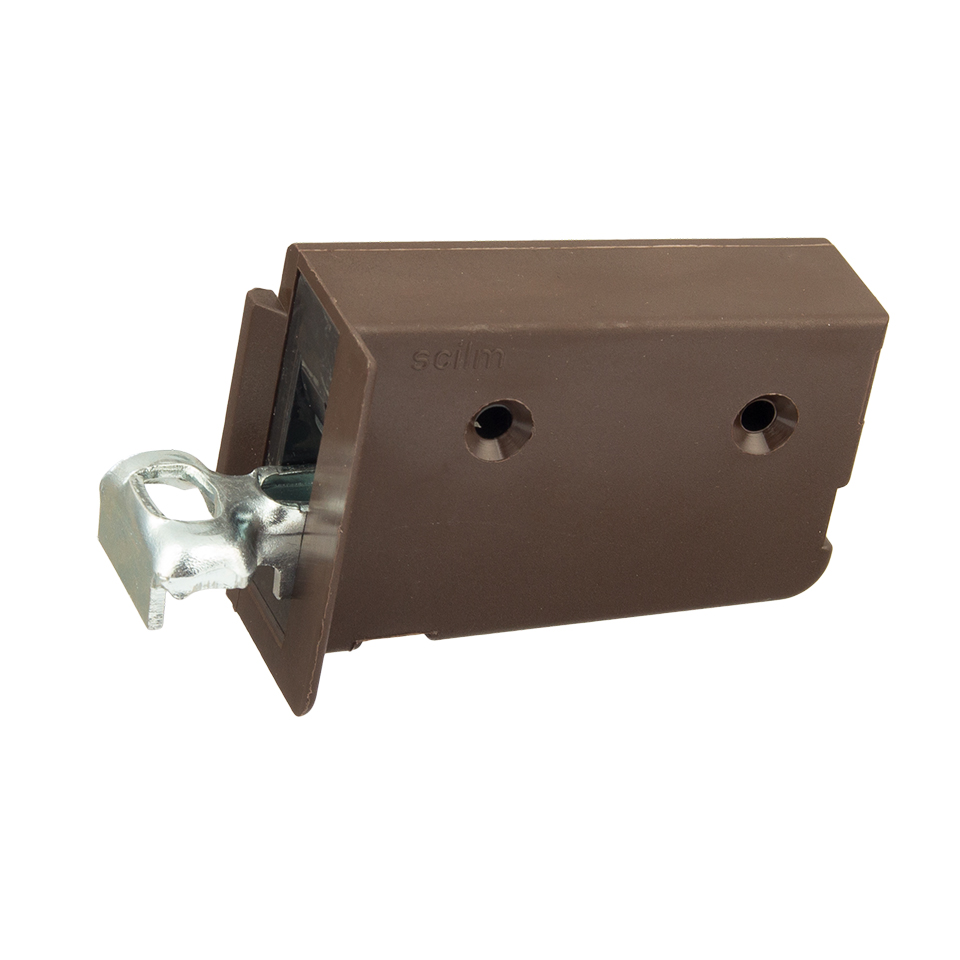

Cabinet hanger Scilm brown right
SCILM (Italy) suspension fittings for upper suspended bodies. Mounting with screws on the side of the body. Load capacity 70 kg/piece (140 kg/pair). The maximum load capacity is affected by the fixing of the fittings to the body and the fixing of the hanging counter/bar to the wall.

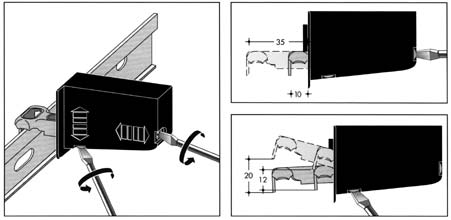

Regulation in the direction from top to bottom +/- 10mm. Regulation perpendicular to the wall +/- 10mm. Lateral regulation by shifting on the hanging counter. Suitable counterpart 100236, possibly + fixing bar 82780 or 82780R.
Hinge body plastic (PC+ABS), outer colored plastic shell (PA6), hinge and screws galvanized steel.
Design (right/left) and color see product name.
Related documents
OtherParameters
| Parameter | Value |
|---|---|
| Mounting into material | Screw |
| Title | Code | Availability |
Divisibility/ packaging |
Basic price per unit | |
|
Tips for a better price
Order the whole package and your price per pc (pcs) will be %price% |
93241 |
>
S
In stock
|
1 pcs / 300 pcs |
0,313 EUR
/ pcs
0,3787 EUR incl. VAT
|
|
