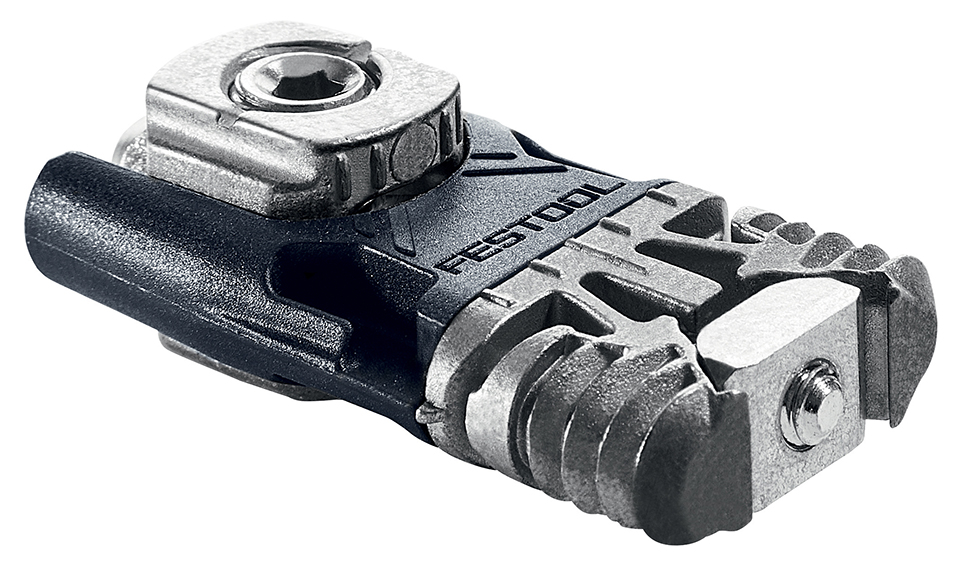

FESTOOL 203166 Angle BOSCHlt KV D8/50
Product range code
456904
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Perfect joining. Now even more versatile. New bolts for housings and furniture for the DOMINO DF 500 dowel hole milling machine.
Strengths and benefits
- The sophisticated DOMINO system allows very simple and precise determination of the position of the joints and additional stops and aids are therefore unnecessary. For efficient and fast work
- The large tightening range and long studs of the bolts make it extremely easy to assemble the furniture. Thanks to this, even the separate assembly of the cabinets is no longer a problem
- Aligned fittings protect individual parts of the furniture from being scratched
- The fittings easily compensate for milling and cutting tolerances of up to 1.4 mm
- li>The new, re-expandable bolts for DOMINO cabinets and furniture are perfectly suitable for board thicknesses from 18 to 28 mm
- for 50 corner joints with DF 500
- the DOMINO / DOMINO KV D8/50 bolt is placed in the side of the cabinet and in the bottom of the structure using the DOMINO DF 500 pin hole milling machine
Scope of delivery
50 x Expander anchor, 50 x M4 threaded pin, 50 x Plastic clip halves, 50 x Transverse anchor with threaded pin, without covers, in a carton
