Flange for the support leg of the central bed beam +25mm
Product range code
501504
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Related product range (accessories) (1)

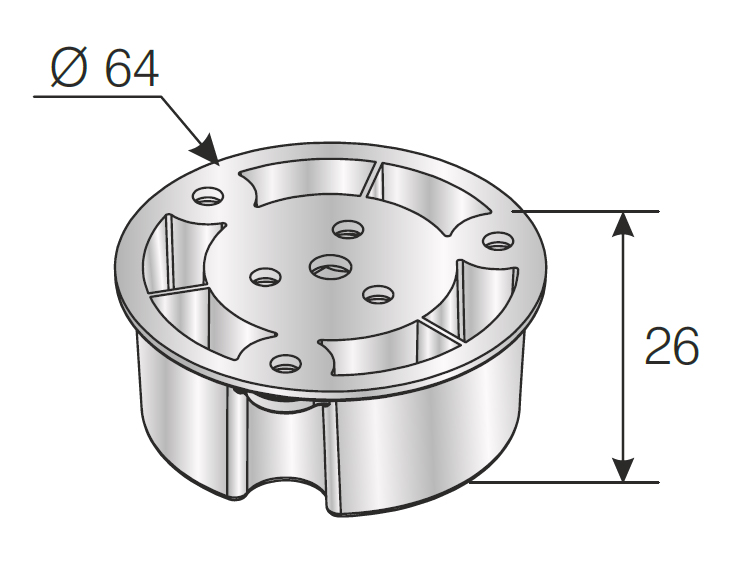

Flange for surface mounting of the support leg of the central bed beam (501503). Height 26mm, outer diameter 64mm. Load capacity 300kg, black plastic.

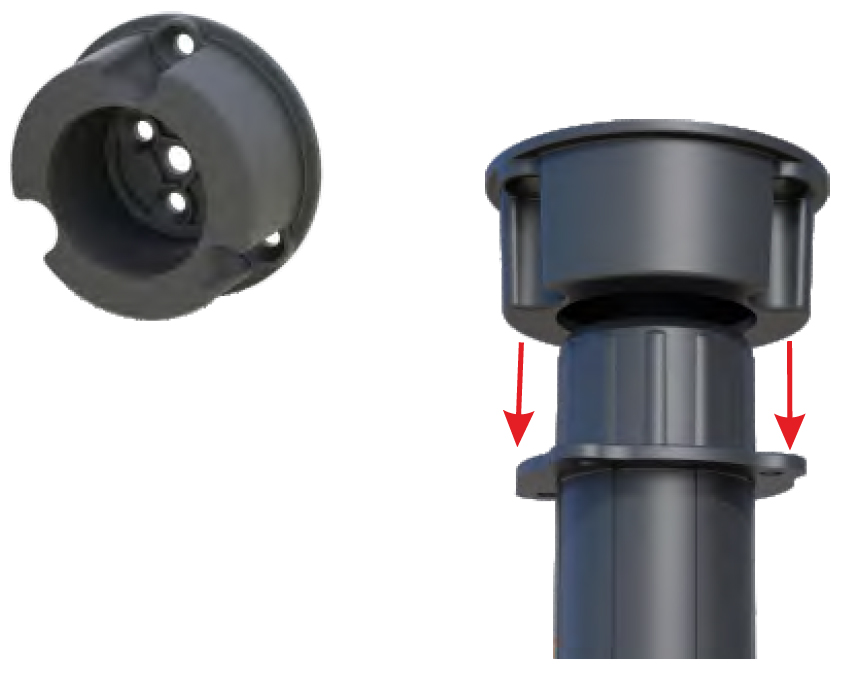

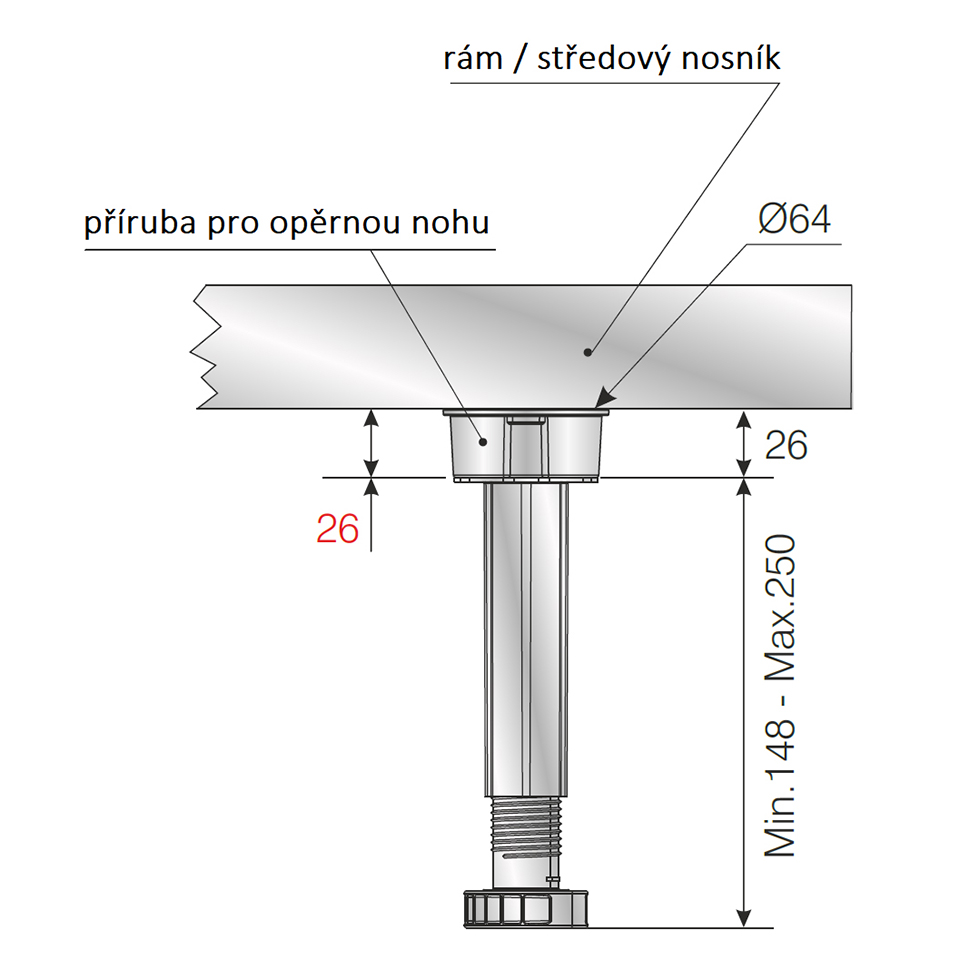

Can be used as an extension of the support leg 501503 by 25mm. The mounting holes for the screws are 3 á 120° on the circumference of the upper collar, another 3 á 120° inside the flange and the last one is in the axis of the flange.
Related documents
Technical description| Title | Code | Availability |
Divisibility/ packaging |
Basic price per unit | |
|
Tips for a better price
Order the whole package and your price per pc (pcs) will be %price% |
501503 |
>
S
In stock
|
1 pcs / 250 pcs |
1,5057 EUR
/ pcs
1,8219 EUR incl. VAT
|
|
