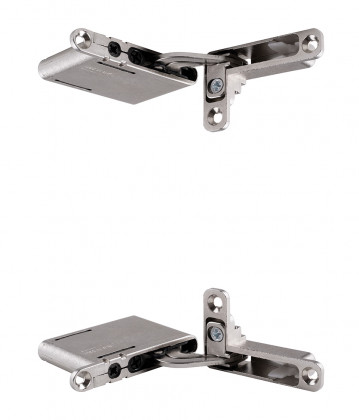

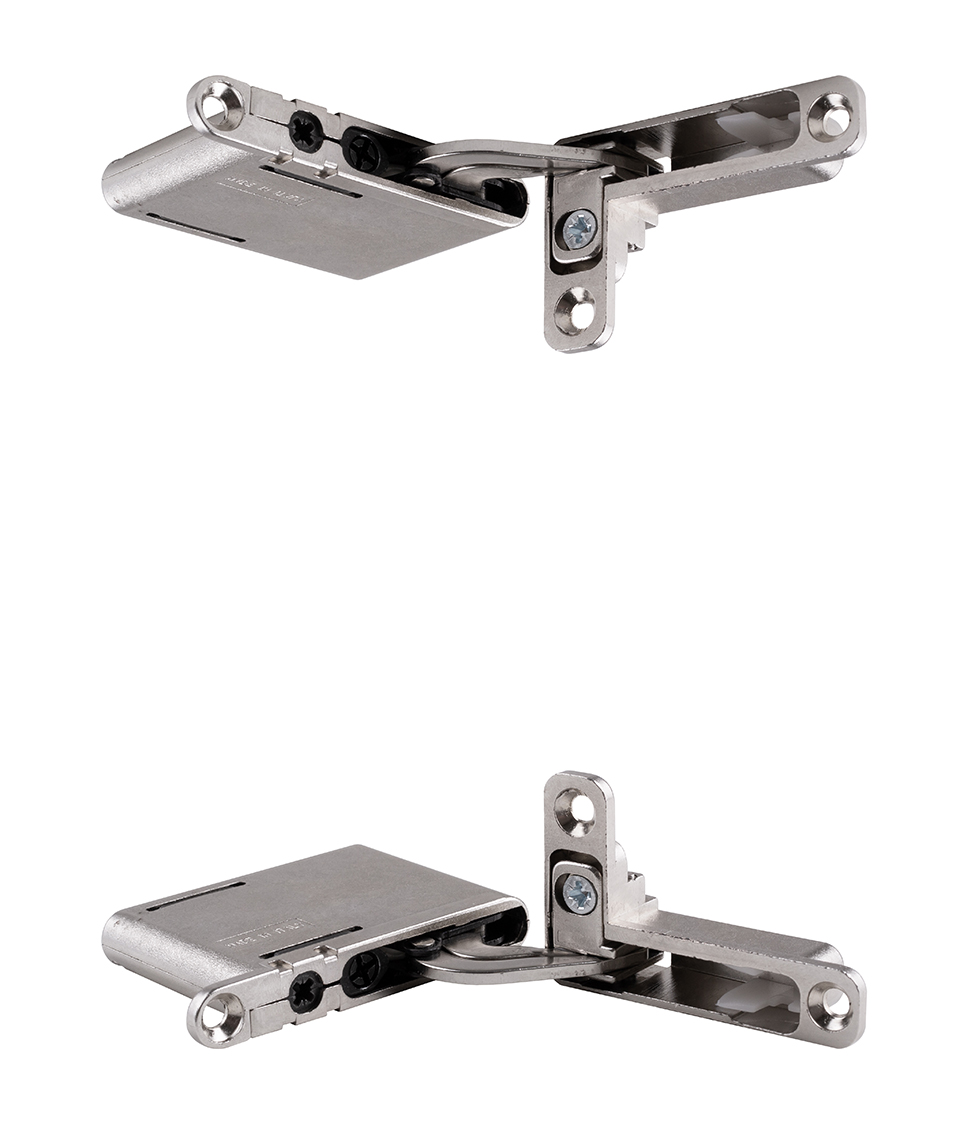

FURNITAL hinge milled, nickel-plated, without spring, right
Product range code
409061
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

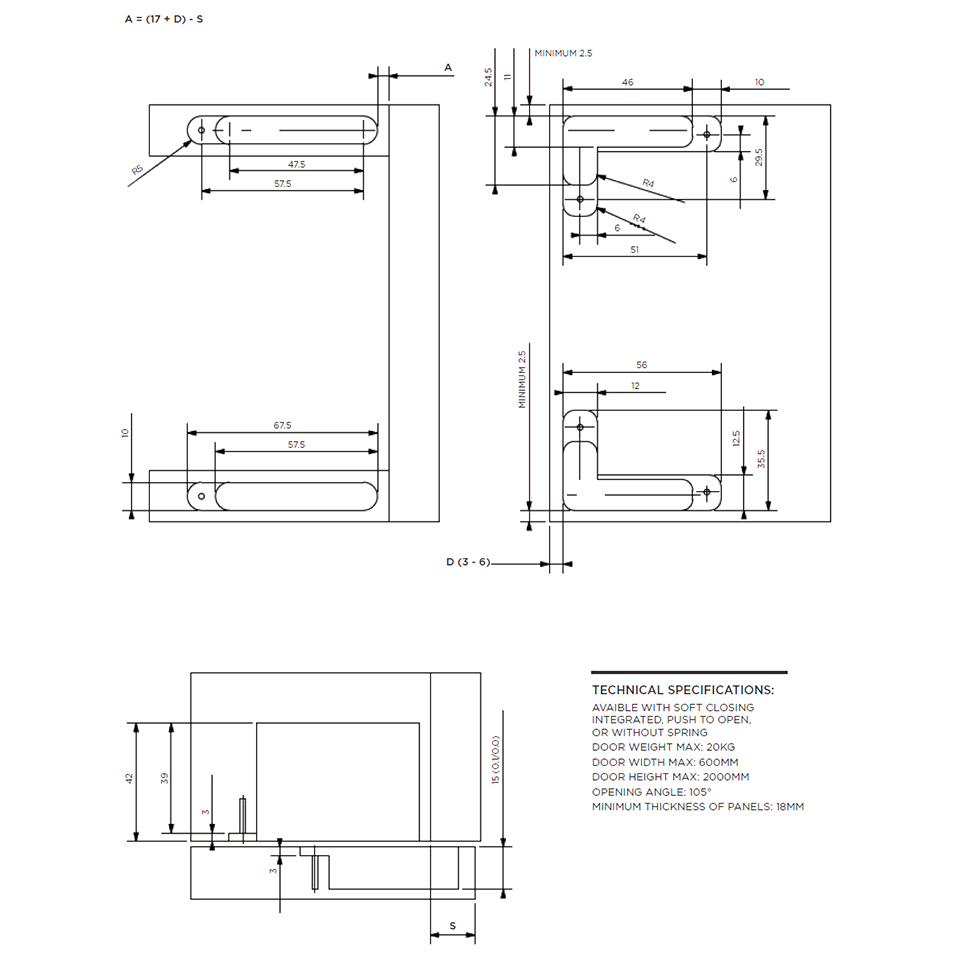

High-end and trendy curtain design. Nickel plated design. Great parameters. Hinge and cup milled into the body and door. Springless version for hinges and handleless mechanisms. The dynamic load capacity is 16 kg per pair. Opening angle 105°. Possibility of drilling from the edge of the door K=3-6mm. The minimum thickness of the material to be milled is 18 mm.
Integrated depth adjustment +2/-0.5 mm, integrated loading adjustment +2/-2 mm, integrated height adjustment +1.5/-1.5 mm.
Do vyprodání zásob
Parameters
| Parameter | Value |
|---|---|
| Angle of opening | 105 |
| Mounting into material | To be milled |
