Hanger 50x50 - galvanized steel
Product range code
392591
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Related product range (accessories) (1)

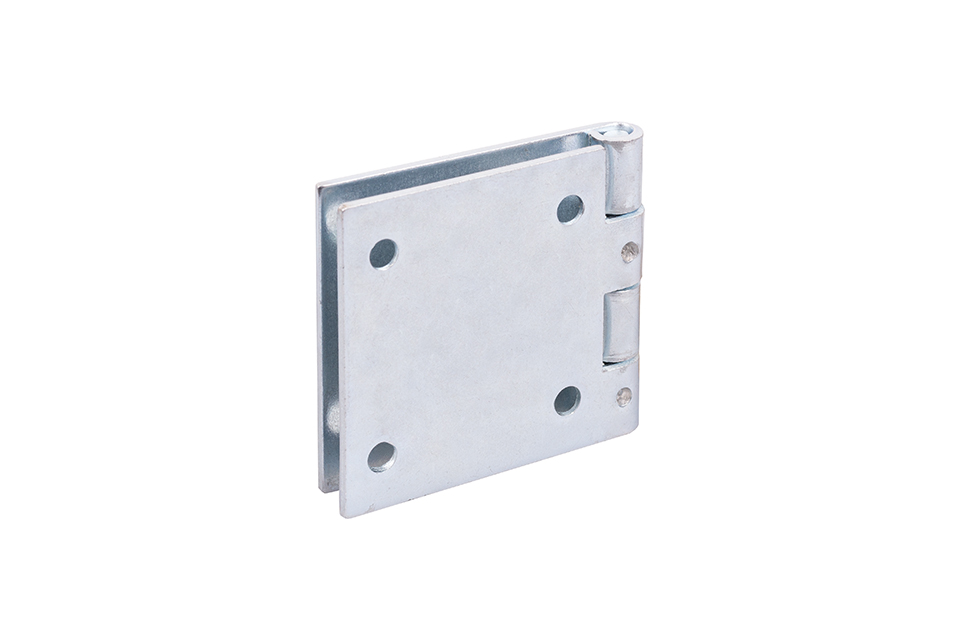

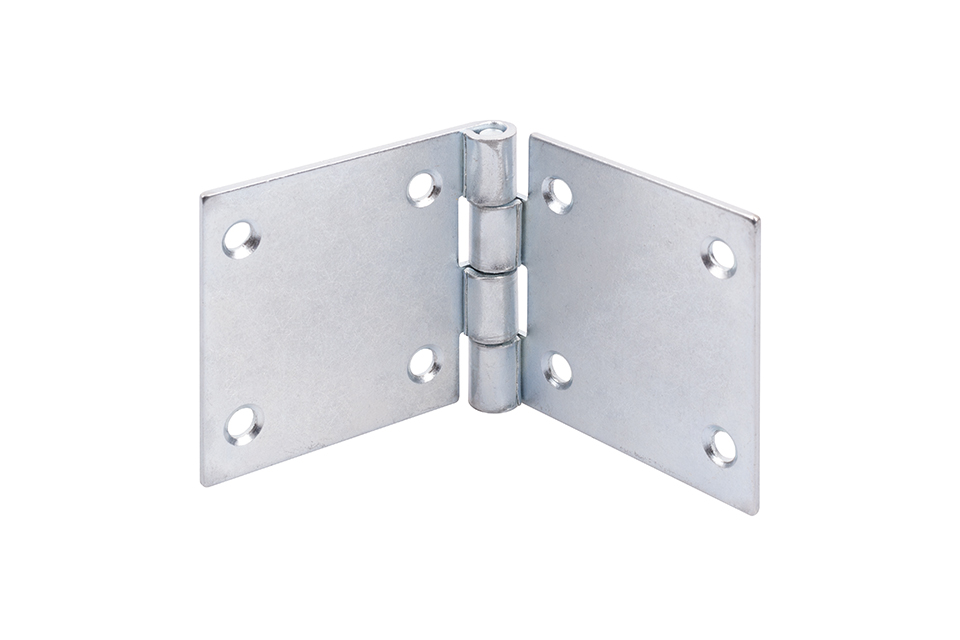

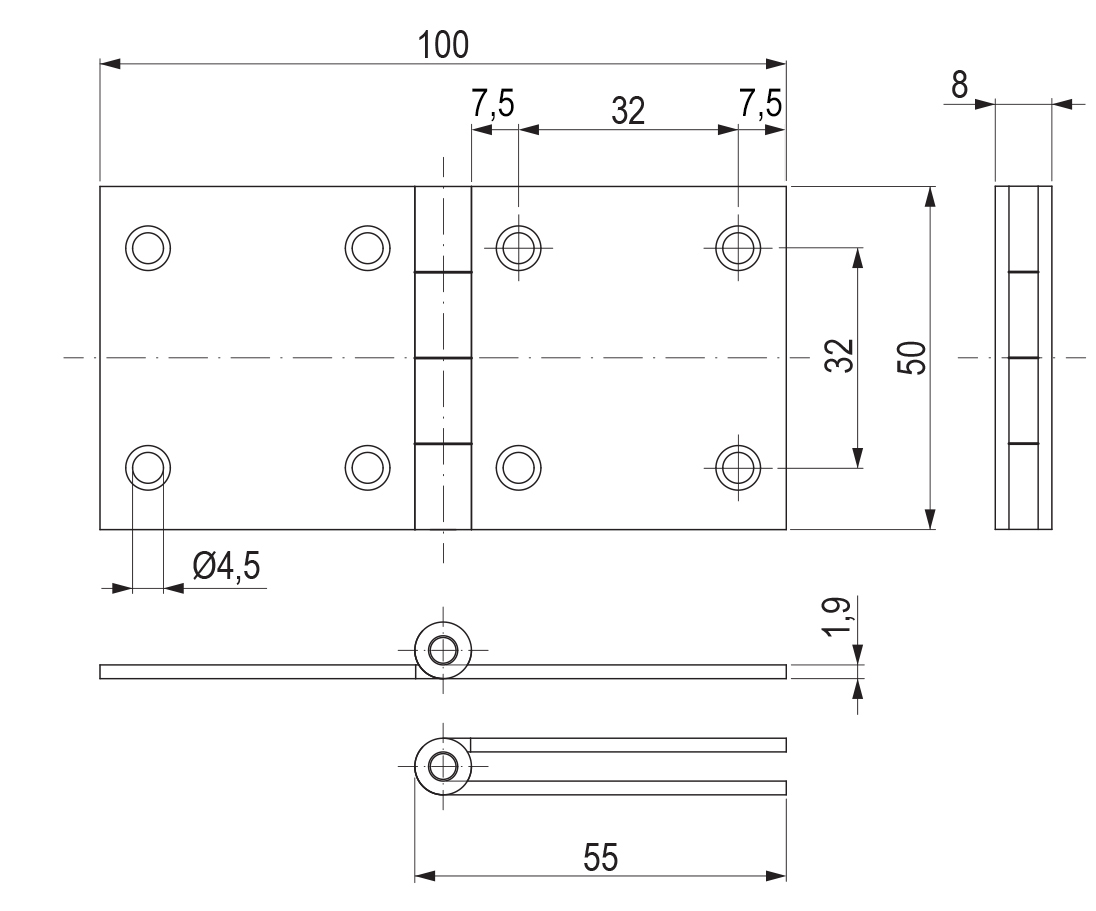

hinge 50x50mm, in the open state 100x50mm. on each half there are 4 holes with a diameter of 7mm, the distance between the holes is 32mm, the outer diameter of the pin and the thickness of the hinge in the closed state is 8mm. Sheet thickness 1.8 mm
Related documents
Technical descriptionParameters
| Parameter | Value |
|---|---|
| Angle of opening | 180 |
| Mounting into material | Screw |
| Title | Code | Availability |
Divisibility/ packaging |
Basic price per unit | |
|
Tips for a better price
Order the whole package and your price per pc (pair) will be %price% |
11455 |
>
S
In stock
|
1 pair / 1 pair |
281,1965 EUR
/ pair
340,2478 EUR incl. VAT
|
|
