HAWA 27636 Folding Concepta 25 1250-1850mm silver left new
For a design video with tips on how to use it, see the video tutorial section at: youtube
Fitting kit for one biplane .

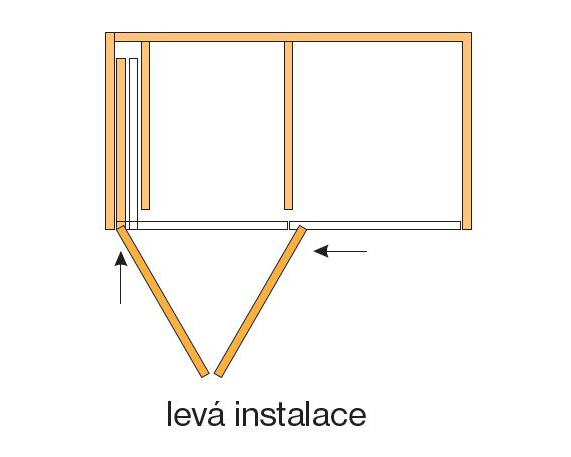

Left version.
Color - silver anodized.
Maximum load capacity 2 x 25kg.
Width of wing 300 - 700mm.
Height of wing 1250 - 1850mm.
Material thickness 18 - 26mm. New version with cushioned curtains.
Recommendation:
The body with this fitting should have a full back (18mm) to ensure sufficient rigidity of the cabinet.
In the instructions, the thickness of the material mentioned is min. 19 mm, it is possible to use 18 mm fillers, it is only necessary to check on the sample whether the length of the screws is possibly too long and there is no bulging / damage to the surface on the other side.
It is recommended to install 2 stiffeners on each wing to ensure the stability of the wing .
We recommend using a calculator to calculate dimensions, drilling and milling, so that the fittings are in the correct positions. For a simpler calculation, we recommend using the Calculation aid on the Hawa website: www.hawa.ch
After downloading (must use MS Excel), just choose the version (right/left, type of lower end (usually middle solution without profile) and enter cabinet parameters and the form will calculate the necessary cuts, drilling, etc.
Related documents
Assembly instructions| Title | Code | Availability |
Divisibility/ packaging |
Basic price per unit | |
|
Tips for a better price
Order the whole package and your price per pc (set) will be %price% |
469318 |
>
O
On demand
|
1 set / 1 set |
1 742,0475 EUR
/ set
2 107,8775 EUR incl. VAT
|
|
Tips for a better price
Order the whole package and your price per pc (pcs) will be %price% |
521957 |
>
O
On demand
|
1 pcs / 1 pcs |
35,0605 EUR
/ pcs
42,4231 EUR incl. VAT
|
|
Tips for a better price
Order the whole package and your price per pc (pcs) will be %price% |
521968 |
>
O
On demand
|
1 pcs / 1 pcs |
31,1649 EUR
/ pcs
37,7095 EUR incl. VAT
|
|
|
|
| Title | Code | Availability |
Divisibility/ packaging |
Basic price per unit | |
|
Tips for a better price
Order the whole package and your price per pc (set) will be %price% |
352489 |
>
O
On demand
|
1 set / 1 set |
1 914,9443 EUR
/ set
2 317,0826 EUR incl. VAT
|
|
Tips for a better price
Order the whole package and your price per pc (set) will be %price% |
352519 |
>
O
On demand
|
1 set / 1 set |
155,6071 EUR
/ set
188,2846 EUR incl. VAT
|
|
Tips for a better price
Order the whole package and your price per pc (pcs) will be %price% |
352524 |
>
S
In stock
|
1 pcs / 1 pcs |
46,0056 EUR
/ pcs
55,6667 EUR incl. VAT
|
|
Tips for a better price
Order the whole package and your price per pc (set) will be %price% |
352532 |
>
O
On demand
|
1 set / 1 set |
255,7369 EUR
/ set
309,4416 EUR incl. VAT
|
|
Tips for a better price
Order the whole package and your price per pc (pcs) will be %price% |
352543 |
>
O
On demand
|
1 pcs / 1 pcs |
97,2732 EUR
/ pcs
117,7006 EUR incl. VAT
|
|
Novelty
Set
Tips for a better price
Order the whole package and your price per pc (set) will be %price% |
525375 |
>
S
In stock
|
1 set / 1 set |
2 213,4508 EUR
/ set
2 678,2755 EUR incl. VAT
|
|
Novelty
Set
Tips for a better price
Order the whole package and your price per pc (set) will be %price% |
525376 |
>
O
On demand
|
1 set / 1 set |
2 380,8195 EUR
/ set
2 880,7916 EUR incl. VAT
|
|
Novelty
Set
Tips for a better price
Order the whole package and your price per pc (set) will be %price% |
525385 |
>
S
In stock
|
1 set / 1 set |
1 883,6725 EUR
/ set
2 279,2437 EUR incl. VAT
|
|
Novelty
Set
Tips for a better price
Order the whole package and your price per pc (set) will be %price% |
525386 |
>
O
On demand
|
1 set / 1 set |
2 051,0412 EUR
/ set
2 481,7598 EUR incl. VAT
|
|
|
|
|
|
|
|
|
|
