HAWA 27642 Folding Concepta 25 1851-2600mm black anodized left
design video with usage tips can be found in the video tutorials section at: youtube
Fitting kit for one biplane.

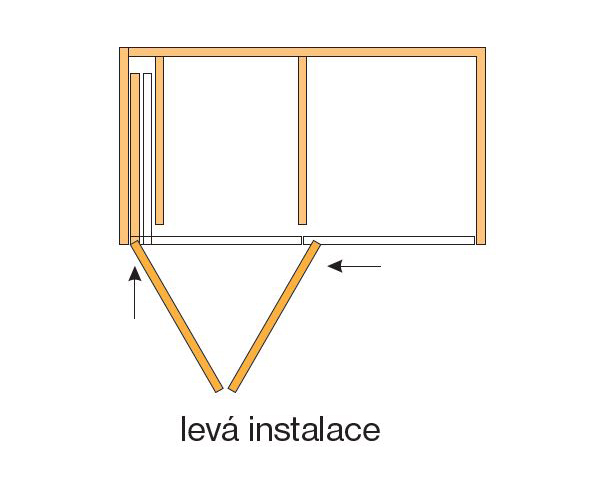

Left version.
Color - black.
Maximum load capacity 2 x 25kg.
Sash width 300 - 700mm.
Sash height 1851 - 2600mm.
Material thickness 18 - 26mm. Damped curtains.
Recommendation:
The body with this fitting should have a full back (18mm) to ensure sufficient rigidity of the cabinet.
In the instructions, the thickness of the material mentioned is min. 19 mm, it is possible to use 18 mm fillers, it is only necessary to check on the sample whether the length of the screws is possibly too long and there is no bulging / damage to the surface on the other side.
It is recommended to install 2 stiffeners on each wing to ensure the stability of the wing .
We recommend using a calculator to calculate dimensions, drilling and milling, so that the fittings are in the correct positions. For a simpler calculation, we recommend using the Calculation aid on the Hawa website: www.hawa.ch
After downloading (must use MS Excel), just choose the version (right/left, type of lower end (usually middle solution without profile) and enter cabinet parameters and the form will calculate the necessary cuts, drilling, etc. Action card - 398680 HAWA 25872 Folding Concepta 25 1851-2600mm black left action card
Delivery time: 9 weeks
Title | Code | Availability |
Divisibility/ packaging |
Basic price per unit | |
Tips for a better price
Order the whole package and your price per pc (set) will be %price% |
352495 |
>
O
On demand
|
1 set / 1 set |
2 077,6176 EUR
/ set
2 513,9172 EUR incl. VAT
|
|
Tips for a better price
Order the whole package and your price per pc (set) will be %price% |
352520 |
>
O
On demand
|
1 set / 1 set |
205,9727 EUR
/ set
249,2269 EUR incl. VAT
|
|
Tips for a better price
Order the whole package and your price per pc (set) will be %price% |
352523 |
>
O
On demand
|
1 set / 1 set |
285,0541 EUR
/ set
344,9155 EUR incl. VAT
|
|
Tips for a better price
Order the whole package and your price per pc (pcs) will be %price% |
352524 |
>
S
In stock
|
1 pcs / 1 pcs |
46,0056 EUR
/ pcs
55,6667 EUR incl. VAT
|
|
Tips for a better price
Order the whole package and your price per pc (set) will be %price% |
352532 |
>
O
On demand
|
1 set / 1 set |
255,7369 EUR
/ set
309,4416 EUR incl. VAT
|
|
Tips for a better price
Order the whole package and your price per pc (pcs) will be %price% |
352543 |
>
O
On demand
|
1 pcs / 1 pcs |
97,2732 EUR
/ pcs
117,7006 EUR incl. VAT
|
|
Tips for a better price
Order the whole package and your price per pc (pcs) will be %price% |
521957 |
>
O
On demand
|
1 pcs / 1 pcs |
35,0605 EUR
/ pcs
42,4231 EUR incl. VAT
|
|
Tips for a better price
Order the whole package and your price per pc (pcs) will be %price% |
521968 |
>
O
On demand
|
1 pcs / 1 pcs |
31,1649 EUR
/ pcs
37,7095 EUR incl. VAT
|
|
|
|
|
|
|
|
|
Title | Code | Availability |
Divisibility/ packaging |
Basic price per unit | |
Tips for a better price
Order the whole package and your price per pc (set) will be %price% |
352492 |
>
O
On demand
|
1 set / 1 set |
1 886,9801 EUR
/ set
2 283,2459 EUR incl. VAT
|
|
