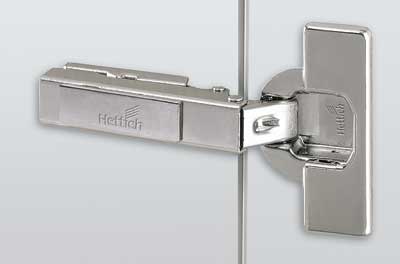

HETTICH 1029522 Intermat 9943 TB43 K0 loaded, for pressing
Product range code
104193
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

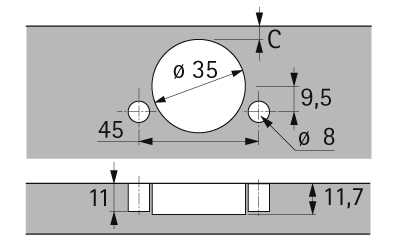

Hinge loaded with clip technique for pressing. Door thickness from 15 mm. Bowl diameter 35 mm. With a spring. Integrated loading adjustment + 1.0 mm / - 2.5 mm. Integrated depth adjustment using an eccentric +- 2 mm. Height adjustment using a mounting pad +- 2 mm. Recommended washers: D1.5 screw 103757; D1.5 euro106369.
Do you know that for upper cabinets you can use hinges instead of hinges FREElift?
Termín dodání od 8-ti do 21 dní.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Angle of opening | 110 |
| Mounting into material | Dowel |
| Mounting on washer | To jam |
