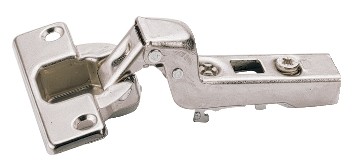

HETTICH 1030922/48052 Intermat 9943 T42 K16, embedded
Product range code
169764
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Hinge inserted with clip technology on a screw. Door thickness from 15 mm. Bowl diameter 35 mm. With a spring. Integrated loading adjustment + 1.0 mm / - 2.5 mm. Integrated depth adjustment using an eccentric +- 2 mm. Height adjustment using a mounting pad +- 2 mm. Recommended washers: D1.5 screw 103757; D1.5 euro106369.
Do you know that for upper cabinets you can use hinges instead of hinges FREElift?
Parameters
| Parameter | Value |
|---|---|
| Angle of opening | 110 |
| Mounting into material | Screw |
| Mounting on washer | To jam |
