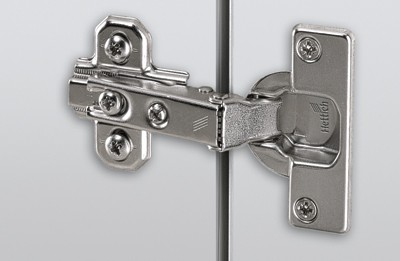

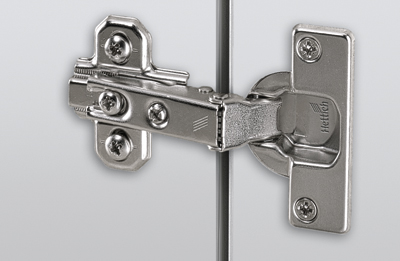

HETTICH 1078660 Slide-on hinge 2333 T42 loaded
Product range code
107616
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Related product range (accessories) (2)

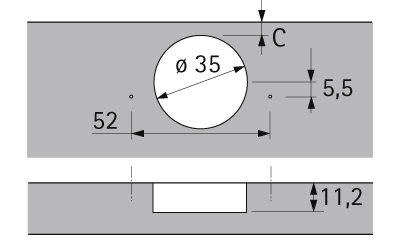

Spring-loaded bowl hinge, slide assembly, door thickness from 14mm, bowl diameter 35mm, with spring, integrated loading adjustment +0.5mm/-2.5mm, integrated depth adjustment +-2mm, height adjustment using mounting pad +-2mm, bowl and hinge arm: nickel-plated steel. Recommended washers: D1.5 screw 106340; D1.5 euro 106419.
Do you know that for upper cabinets you can use hinges instead of hinges FREElift?
Parameters
| Parameter | Value |
|---|---|
| Angle of opening | 95 |
| Mounting into material | Screw |
| Mounting on washer | To slip on |
| Title | Code | Availability |
Divisibility/ packaging |
Basic price per unit | |
|
Tips for a better price
Order the whole package and your price per pc (pcs) will be %price% |
106340 |
>
S
In stock
|
1 pcs / 400 pcs |
0,3635 EUR
/ pcs
0,4399 EUR incl. VAT
|
|
Tips for a better price
Order the whole package and your price per pc (pcs) will be %price% |
106419 |
>
S
In stock
|
1 pcs / 400 pcs |
0,4625 EUR
/ pcs
0,5596 EUR incl. VAT
|
|
|
