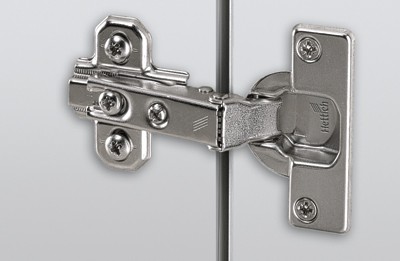

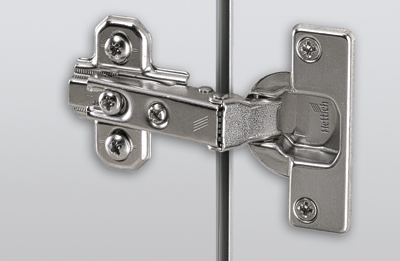

HETTICH 1078663 Slide-on Hinge 2333 T43, loaded, for pressing
Product range code
107624
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Related product range (accessories) (1)

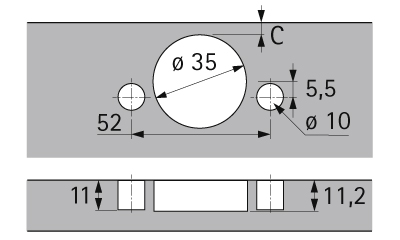

Spring-loaded cup hinge, slide-in assembly. Quality in accordance with EN 15570, level 2. For door thickness 14 - 25 mm. Bowl diameter 35 mm. Bowl depth 11.1 mm. Integrated loading adjustment + 0.5 mm, - 2.5 mm. Integrated depth adjustment + 2 mm, - 2 mm. Height adjustment with a mounting pad (must be ordered separately).
Do you know that for upper cabinets you can use hinges instead of hinges FREElift?
Parameters
| Parameter | Value |
|---|---|
| Angle of opening | 95 |
| Mounting into material | Dowel |
| Mounting on washer | To slip on |
| Title | Code | Availability |
Divisibility/ packaging |
Basic price per unit | |
|
Tips for a better price
Order the whole package and your price per pc (pcs) will be %price% |
106340 |
>
S
In stock
|
1 pcs / 400 pcs |
0,3635 EUR
/ pcs
0,4399 EUR incl. VAT
|
|
