HETTICH 13235 Folding fittings KH 250 mm
Product range code
104345
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

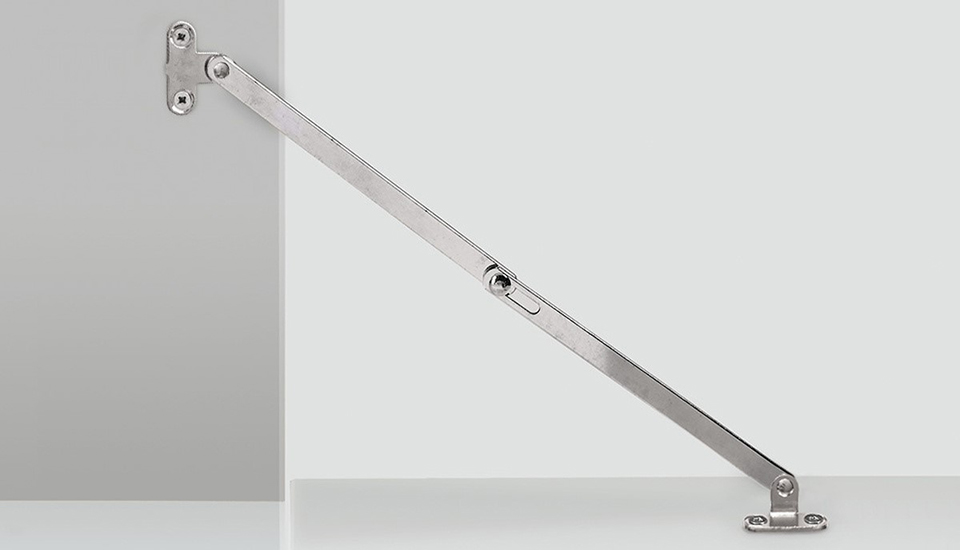

Holding hardware 250mm for wooden doors or doors with a wooden frame. Can be used on one or both sides (left and/or right). Body clearance min. 202mm. Nickel-plated steel.
The hinged door must be fitted with hinges for the hinged door at the bottom, please order separately.

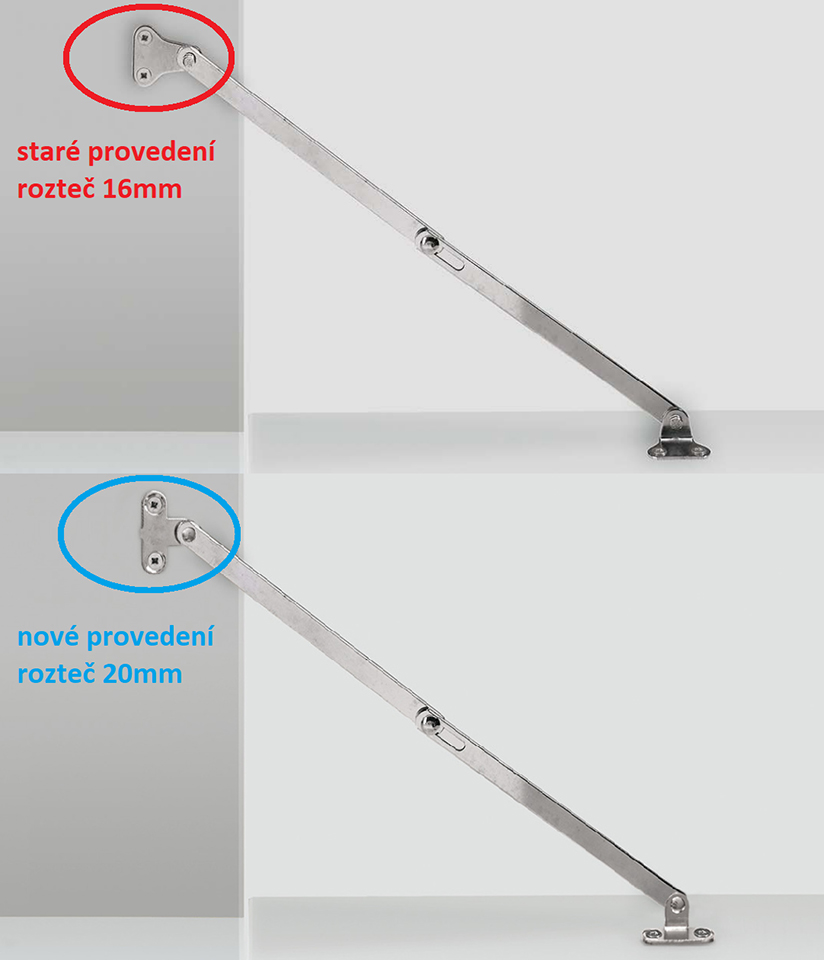

Temporarily there may be two versions of the body attachment. The old version of the triangular shape (drilling distance 16mm) and the new version of the "T" shape (drilling distance 20mm). Please check the delivered design before production preparation.
Parameters
| Parameter | Value |
|---|---|
| Colour | Nickel |
| Design | Mechanic |
| Height of body (mm) | 210 - 450 |
| Type of front side | Wood, wide alu frame |
