HETTICH 20866 Klassik D 405-464 LP
Product range code
104121
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

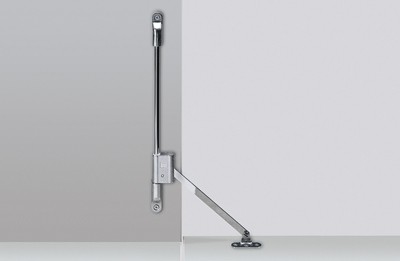

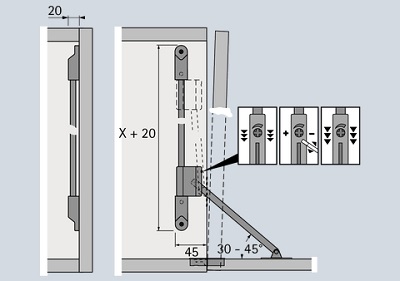

Klassik D hinged door brake with bearing L 3280 D. Body clearance 404-464 mm. Load capacity 4 kg for one brake, 8 kg for 2 brakes. Guide rod, pull rod and foot: nickel-plated steel, body and bearing: zinc die-cast. The order number refers to the left version, by relocating the foot we can achieve the right version.
Delivery time from 8 to 21 days. In the case of ordering a quantity other than the size of the package, we charge a fee of CZK 50.
Parameters
| Parameter | Value |
|---|---|
| Colour | Nickel |
| Design | Mechanic |
| Height of body (mm) | 405 - 464 |
| Type of front side | Wood, wide alu frame |
