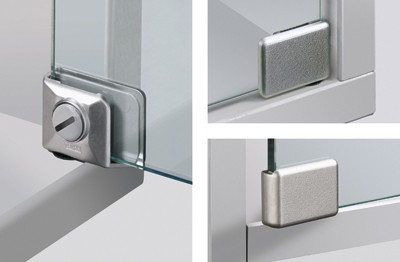

HETTICH 20870 Glass hanger ET 150 set
Product range code
103879
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
For inset glass doors. Door dimensions max. 1000 x 500 mm. Opening angle 105°. Glass thickness max. 5.2 mm. Top and bottom gap required 3mm, sides 2.8mm. The hinge is mounted on the glass door using a tightening screw and therefore it is not necessary to drill into the glass. Set: 1 upper and 1 lower hinge. Zinc casting - nickel-plated matt.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Angle of opening | 105 |
| Mounting into material | Undefined |
| Mounting on washer | Undefined |
