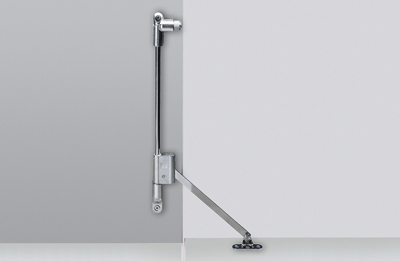

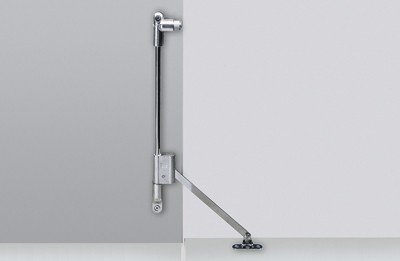

HETTICH 21581 Klassik D 465-564 L with magnet
Product range code
104139
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

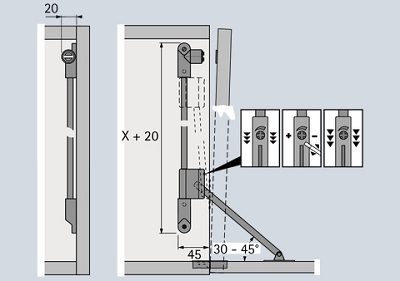

L-left brake. Load capacity 4 kg per brake. Cabinet clearance 465 - 564 mm. Important: the angle between the draw bar and the open door must be 30 - 45 °. With the door open, the brake body must rest on the lower bearing.
Delivery time from 8 to 21 days. In the case of ordering a quantity other than the size of the package, we charge a fee of CZK 50.
Parameters
| Parameter | Value |
|---|---|
| Colour | Nickel |
| Design | Mechanic |
| Height of body (mm) | 465 - 564 |
| Type of front side | Wood, wide alu frame |
