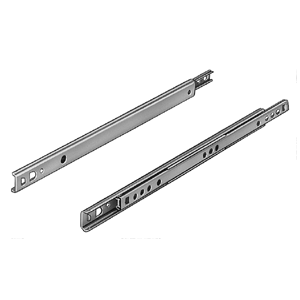

HETTICH 30765 KA 1730/300 ball slide
Product range code
104011
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Designed for drawer length 185-305mm.

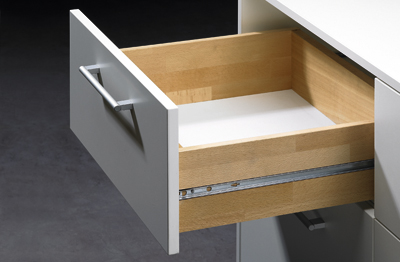

Partial ball extension for wooden drawers, 17 mm groove, load capacity 10 kg. Guide rails and ball cage form a complete indivisible unit. The arrow indicates the orientation of the slide. For drawers with a slotted, half-slotted or butt bottom. The cabinet rail is mounted from the front edge of the side, the drawer rail is mounted from the rear edge of the drawer. Galvanized steel.
Parameters
| Parameter | Value |
|---|---|
| Length (mm) | 300 |
| Load capacity (kg) | 10 |
| Movement of extended drawer | Without damping |
| Type of extension guide | Partial extension |
