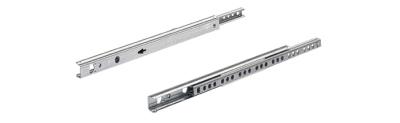

HETTICH 30767 KA 1730/450 ball slide
Product range code
104013
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Designed for a 450mm drawer.
Partial ball extension for wooden drawers, 17 mm groove, load capacity 10 kg. Guide rails and ball cage form a complete indivisible unit. The arrow indicates the orientation of the slide. For drawers with a slotted, half-slotted or butt bottom. Galvanized steel. Designed for a 450mm long drawer, body rail length 278mm, drawer rail length 450mm.
Parameters
| Parameter | Value |
|---|---|
| Length (mm) | 450 |
| Load capacity (kg) | 10 |
| Movement of extended drawer | Without damping |
| Type of extension guide | Partial extension |
