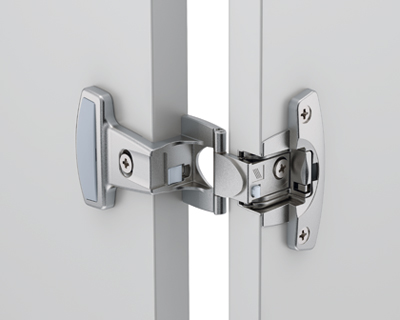

HETTICH 45046 Selecta for 2000 270° loading 12mm
Product range code
141408
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Single-joint bowl hinge for body construction with 16 mm thick sides and 16 mm door, with spring, opening angle 270°. Door loading 12 mm. Pin in the plane of the side. At a 180° opening angle, the doors do not interfere with the body's lightness, so the interior space is free for pull-out elements. The recommended hinge plate no. 104576 is ordered separately.
Termín dodání od 8-ti do 21 dní.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Angle of opening | 270 |
| Mounting into material | Screw |
| Mounting on washer | To slip on |
