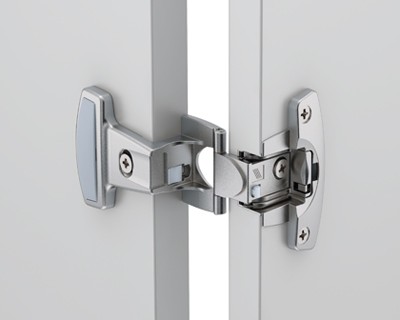

HETTICH 45051 Selecta for 2000 270° loading 16mm
Product range code
119078
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Selekta Pro 2000 single-joint bowl hinge for body construction with 19 mm thick sides and doors. Opening angle 270°. No spring. With visible pin. Separate assembly of the bowl and the hanger arms. There are expansion plugs and pre-assembled screws in the hinge arm. The recommended hinge plate no. 104576 is ordered separately.
Termín dodání od 8-ti do 21 dní.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Angle of opening | 270 |
| Mounting into material | Screw |
| Mounting on washer | To slip on |
