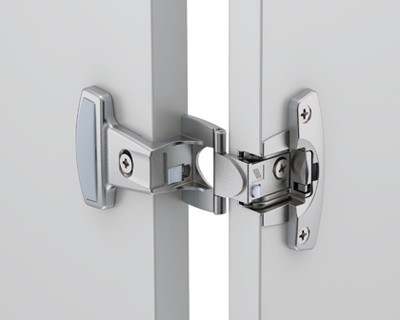

HETTICH 45057 Selecta for 2000 230° loading 11 mm
Product range code
184350
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
One-hinged bowl hinge with clip technology for corpus and endless construction with sides and doors 19 mm thick, opening angle 230°. No spring. The recommended hinge plate no. 104576 is ordered separately. Pin in the plane of the side.
Termín dodání od 8-ti do 21 dní.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Angle of opening | 230 |
| Mounting into material | Dowel |
| Mounting on washer | To slip on |
