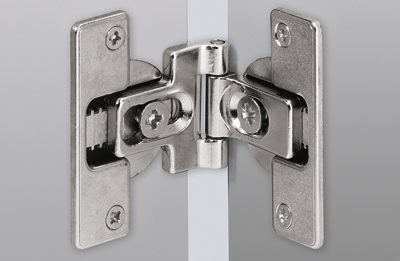

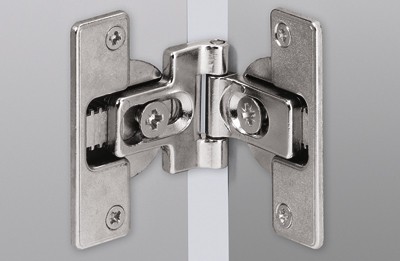

HETTICH 46787 Hinge for folding doors to screw on
Product range code
104142
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

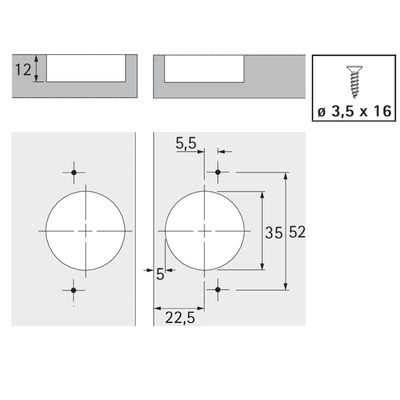

To be screwed on. With an offset pin, to be screwed on, opening angle 180°, door thickness from 15 mm, the gap is continuously adjustable from hair to + 4 mm, the door wings are always in the same plane, the drilling is the same for both parts of the hinge, which are mounted separately.
Do you know that for upper cabinets you can use hinges instead of hinges FREElift?
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Angle of opening | 180 |
| Mounting into material | Screw |
| Mounting on washer | Undefined |
