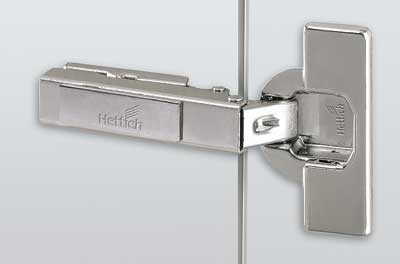

HETTICH 48055 INTERMAT 9943 T43 K16 for pressing
Product range code
184639
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

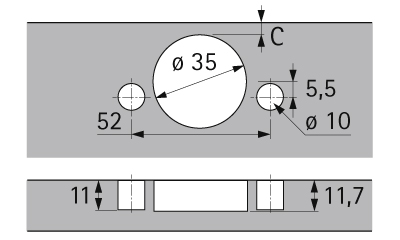

Hinge inserted with clip technique for pressing. Door thickness from 15 mm. Bowl diameter 35 mm. With a spring. Integrated loading adjustment + 1.0 mm / - 2.5 mm. Integrated depth adjustment using an eccentric +- 2 mm. Height adjustment using a mounting pad +- 2 mm. Recommended washers: D1.5 screw 103757 D1.5 euro106369
Do you know that for upper cabinets you can use hinges instead of hinges FREElift?
Delivery time from 8 to 21 days. In the case of ordering a quantity other than the size of the package, we charge a fee of CZK 50.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Angle of opening | 110 |
| Mounting into material | Dowel |
| Mounting on washer | To jam |
