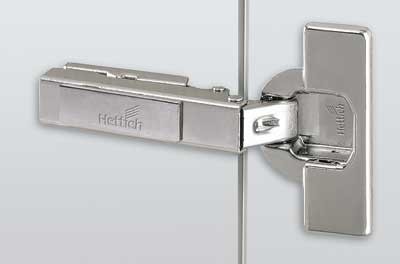

HETTICH 48056 Intermat 9943 TB43 K0 for pressing

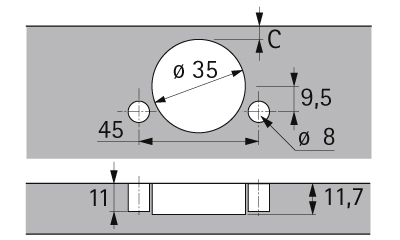

Hinge loaded with clip technique for pressing. Door thickness from 15 mm. Bowl diameter 35 mm. With a spring. Integrated loading adjustment + 1.0 mm / - 2.5 mm. Integrated depth adjustment using an eccentric +- 2 mm. Height adjustment using a mounting pad +- 2 mm. Recommended washers: D1.5 screw 103757 D1.5 euro106369
Do you know that for upper cabinets you can use hinges instead of hinges FREElift?
Delivery time from 8 to 21 days. In the case of ordering quantities outside the package size, we charge a surcharge for handling and shipping. The surcharge is 50 CZK. The amount of the EUR surcharge may vary depending on the current EUR/CZK exchange rate. The exact amount will be adjusted according to the exchange rate and may vary from period to period.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Angle of opening | 110 |
| Mounting into material | Dowel |
| Mounting on washer | To jam |
