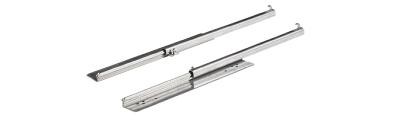

HETTICH 66065 Quadro 40 BM 455-680 mm
Product range code
107121
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

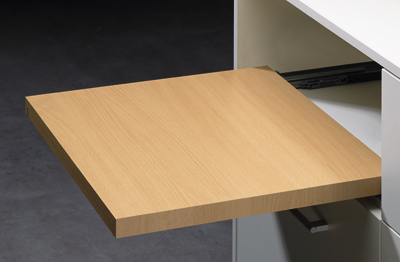

Partial extension for mounting on the bottom of the body. Load capacity 40 kg. Nominal drawer length 455 - 680 mm, minimum cabinet depth 468 - 693 mm. Simple assembly by putting on pins, tool-free height adjustment using a knurled wheel on the pin.
Termín dodání od 8-ti do 21 dní.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Length (mm) | 455 |
| Load capacity (kg) | 30 |
| Movement of extended drawer | With damping |
| Type of extension guide | Full extension slide |
