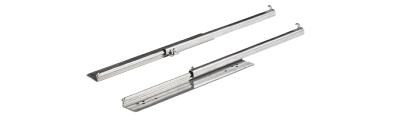

HETTICH 66079 Quadro 40 BM 270-395 mm
Product range code
107119
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

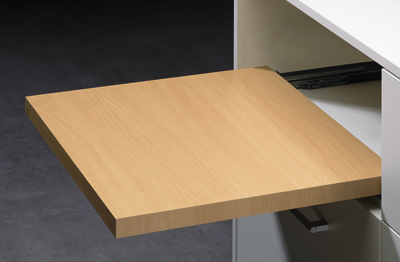

Partial extension for mounting on the bottom of the body. Load capacity 40 kg. Nominal drawer length 270 - 395 mm, minimum cabinet depth 283 - 408 mm. Simple mounting by putting on pins, tool-free height adjustment using a knurled wheel on the pin.
Termín dodání od 8-ti do 21 dní.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Length (mm) | 270 |
| Load capacity (kg) | 30 |
| Movement of extended drawer | With damping |
| Type of extension guide | Full extension slide |
