HETTICH 73914 Intermat 9936 T43, K0 loaded

Product range code 104904
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Base price per pcs
2,2479 EUR 2,72 EUR incl. VAT
> O On demand
Buy
Brand
Hettich
Group code
101001010102
Unit (piece)
pcs
Divisibility
1 pcs
Packaging
50 pcs
Description and parameters

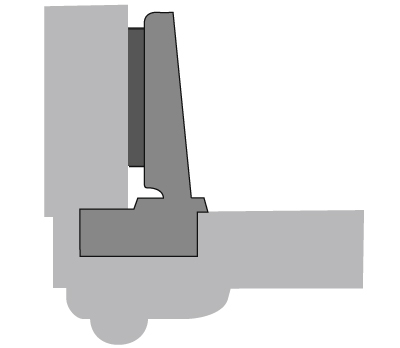

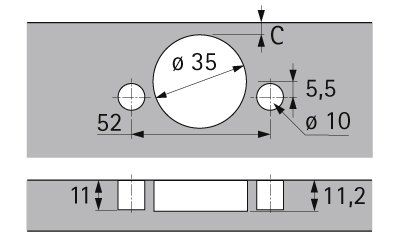

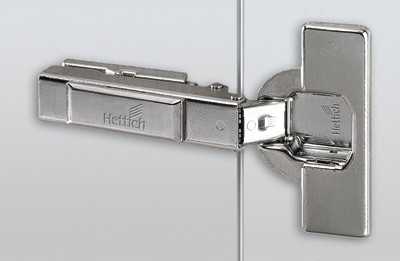

Hinge loaded for pressing with clip technology for profiled doors up to 32 mm. Opening angle 95°. Door thickness from 15 mm. Bowl diameter 35 mm. With a spring. Integrated loading adjustment +2.5 mm. Integrated depth adjustment using an eccentric +- 2.2 mm/-1.8 mm. Height adjustment using a mounting pad +- 2 mm. Recommended washers: D1.5 screw 103757; D1.5 euro106369.

Do you know that for upper cabinets you can use hinges instead of hinges FREElift?

Delivery time from 8 to 21 days. In the case of ordering a quantity other than the size of the package, we charge a fee of CZK 50.

Related documents

Documentation

Parameters

Parameter Value
Angle of opening 95
Mounting into material Dowel
Mounting on washer To jam
