HETTICH 77682 Intermat 9936 W20 T43 K-9
Product range code
185152
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

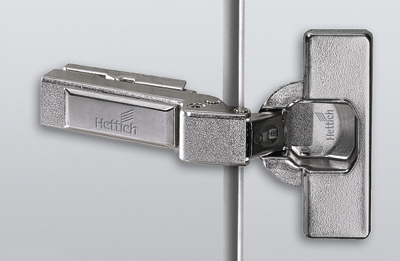

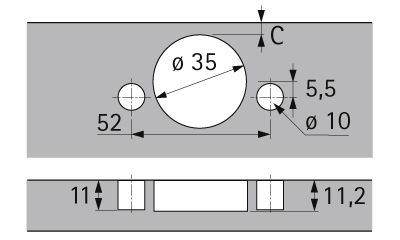

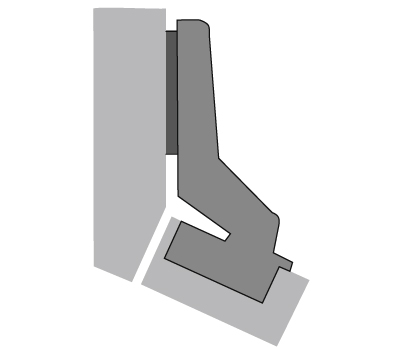

Clip-on bowl hinge inserted for corner and corner cabinets with a body angle of 20°, opening angle 95°, door thickness from 16 mm, bowl diameter 35 mm, with spring. For pressing. Recommended washers: D3 screw 103758 D3 euro106376
Do you know that for upper cabinets you can use hinges instead of hinges FREElift?
Termín dodání od 8-ti do 21 dní.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Angle of opening | 95 |
| Angular variants | 20 |
| Mounting into material | Dowel |
| Mounting on washer | To jam |
