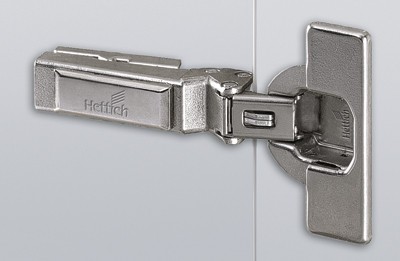

HETTICH 77721 Intermat 9944 W-45 TB43 K10
Product range code
97906
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

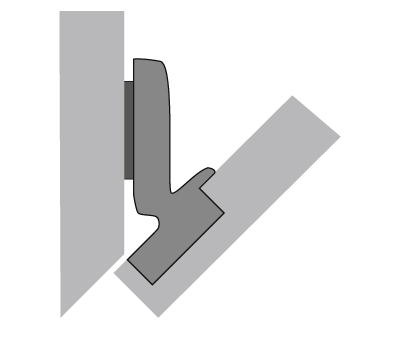

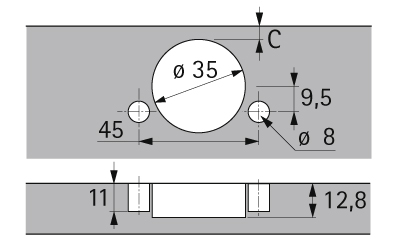

Hinge with clip technology for a loading angle of -45°. Quality in accordance with EN 15570, level 2. for body angle -45°. for door thickness 15 - 28 mm. Bowl diameter 35 mm. Bowl depth 12.7 mm. Integrated loading adjustment + 2 mm, - 2 mm. Integrated depth adjustment + 2 mm, - 2 mm. Height adjustment with mounting pad. Material of the hinge arm: nickel-plated zinc casting. Hinge bowl material: nickel-plated steel.
Do you know that for upper cabinets you can use hinges instead of hinges FREElift?
Termín dodání od 8-ti do 21 dní.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Angle of opening | 125 |
| Angular variants | -45 |
| Mounting into material | Dowel |
| Mounting on washer | To jam |
