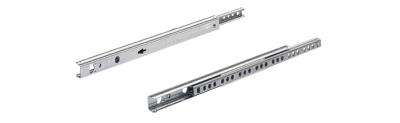

HETTICH 79055 KA 1730/250 Ball slide
Product range code
106760
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Alternatives
Designed for drawer length 185-260mm.
Partial ball extension for wooden drawers, 17 mm groove, load capacity 10 kg. Guide rails and ball cage form a complete indivisible unit. The arrow indicates the orientation of the slide. For drawers with a slotted, half-slotted or butt bottom. The body rail is mounted from the front edge of the side, the drawer rail is mounted from the rear edge of the drawer. Galvanized steel.
Parameters
| Parameter | Value |
|---|---|
| Length (mm) | 250 |
| Load capacity (kg) | 10 |
| Movement of extended drawer | Without damping |
| Type of extension guide | Partial extension |
| Title | Code | Availability |
Divisibility/ packaging |
Basic price per unit | |
|
Tips for a better price
Order the whole package and your price per pc (pair) will be %price% |
92601 |
>
S
In stock
|
1 pair / 100 pair |
0,46 EUR
/ pair
0,5566 EUR incl. VAT
|
|
