HETTICH 9071208 Sensys 8645i 110° TH53 loaded SiSy

Product range code 129392

Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.

Base price per pcs: 4,9801 EUR 6,0259 EUR incl. VAT

> O On demand
Buy

Brand: Hettich
Group code: 101001010101
Unit (piece): pcs

Divisibility: 200 pcs
Packaging: 200 pcs

Description and parameters Alternatives (1)

Description and parameters

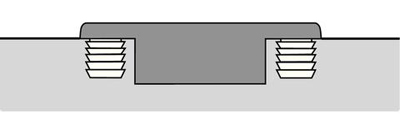

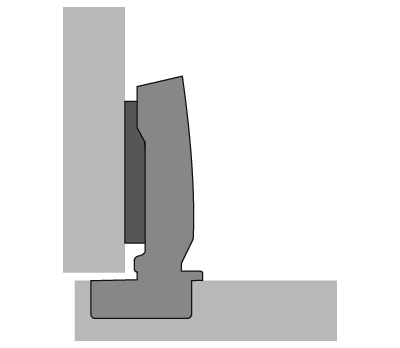

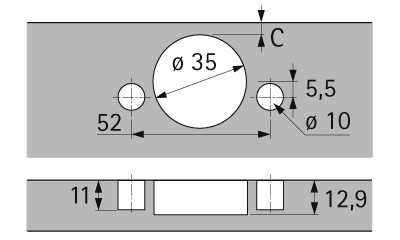

Clip-on cup hinge loaded with integrated damping, to be pressed. For door thicknesses of 15-22 mm. Bowl diameter 35 mm. With a spring. Load adjustment +- 2 mm, depth adjustment +3 mm / -2 mm, height adjustment using a mounting pad. Bowl and arm: nickel-plated steel. Recommended washers: D 1.5 for screw 106403; D 1.5 per euro 119240. Bowl cover no. 105408 and hanger cover no. 105425 are ordered separately. //www.demos24plus.com/content/wysiwyg/cz/Dokumenty/Katalogy/Brozury/Brozura_FreeFamily_Kesse.pdf" target="_blank">FREElift?

Termín dodání od 8-ti do 21 dní. V případě odběru množství mimo velikost balení účtujeme poplatek 50 Kč.

Parameters

Parameter	Value

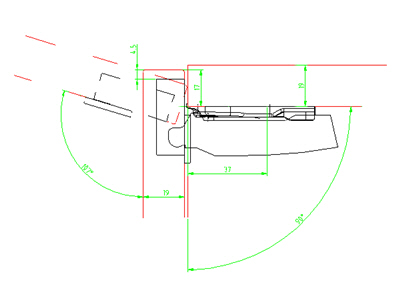

Angle of opening	110
Mounting into material	Dowel
Mounting on washer	To jam

Alternatives

	Title	Code	Availability	Divisibility/ packaging	Basic price per unit
	HETTICH 9313101 Novisys 105° TH52 loaded, for crimping, SiSy Tips for a better price Order the whole package and your price per pc (pcs) will be %price%	497625	> S In stock Only in central warehouse	1 pcs / 1 pcs	3,975 EUR / pcs 4,8097 EUR incl. VAT


HETTICH 9313101 Novisys 105° TH52 loaded, for crimping, SiSy Code 497625 Availability > S In stock Only in central warehouse Divisibility/packaging 1 pcs / 1 pcs Basic price per pc 4,8097 EUR / pcs incl. VAT more less
