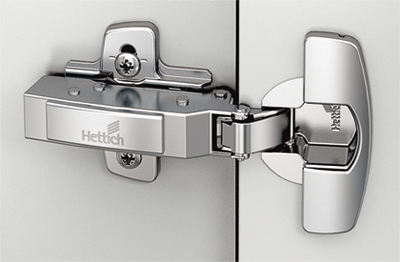

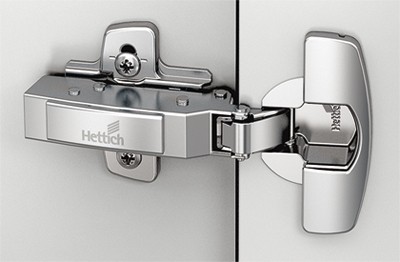

HETTICH 9090262 Sensys 8631i Loaded 15-32mm Quick Mount Flash SiSy
Product range code
264198
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

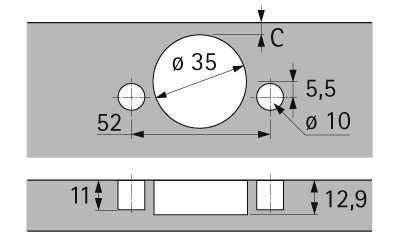

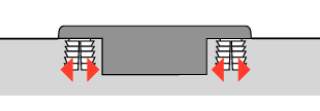

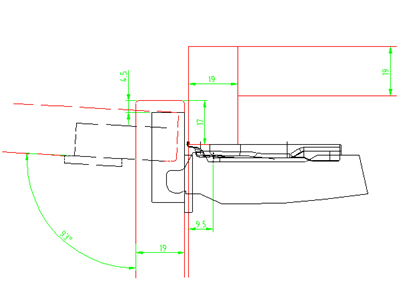

Loaded hinge for doors with a large thickness, door thickness 15-32 mm. With closing spring and integrated SiSy damping. Opening angle 95°. Drilling 52x5.5 mm, bowl depth 12.8 mm. Flash quick assembly (D10x11). Integrated loading adjustment +2/-2 mm. Integrated depth adjustment +3/-2 mm. Height adjustment with mounting pad. Nickel-plated steel.
Do you know that for upper cabinets you can use hinges instead of hinges FREElift?
Termín dodání od 8-ti do 21 dní.
Parameters
| Parameter | Value |
|---|---|
| Angle of opening | 110 |
| Mounting into material | Dowel |
| Mounting on washer | To jam |
