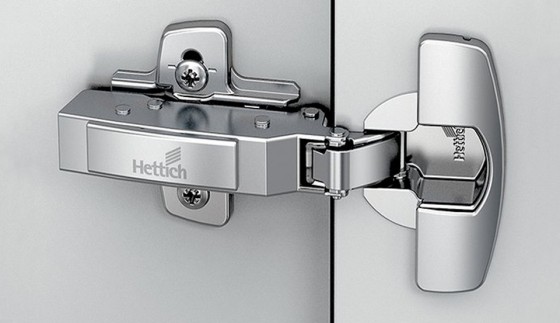

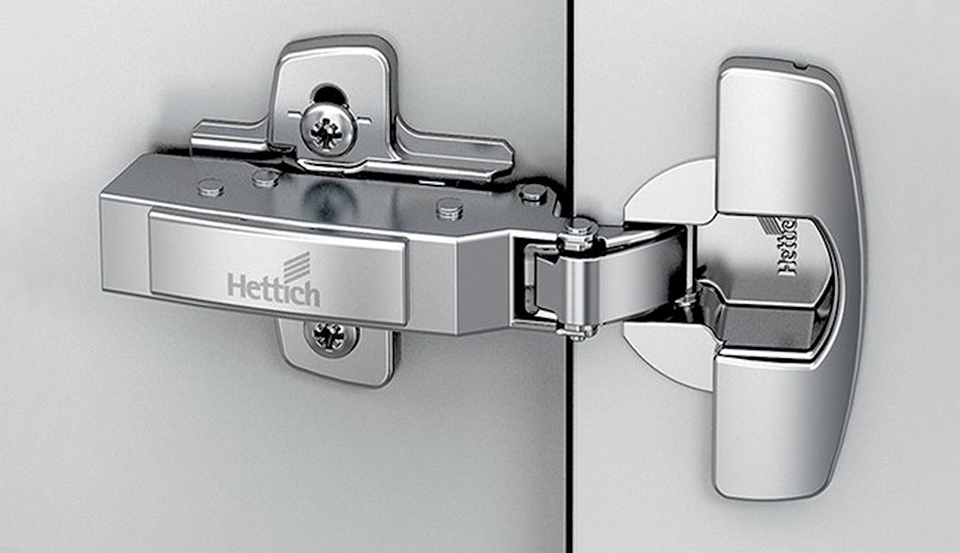

HETTICH 9091491 Sensys 8631 B12.5 TH53 without damping for pressing
Product range code
425047
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

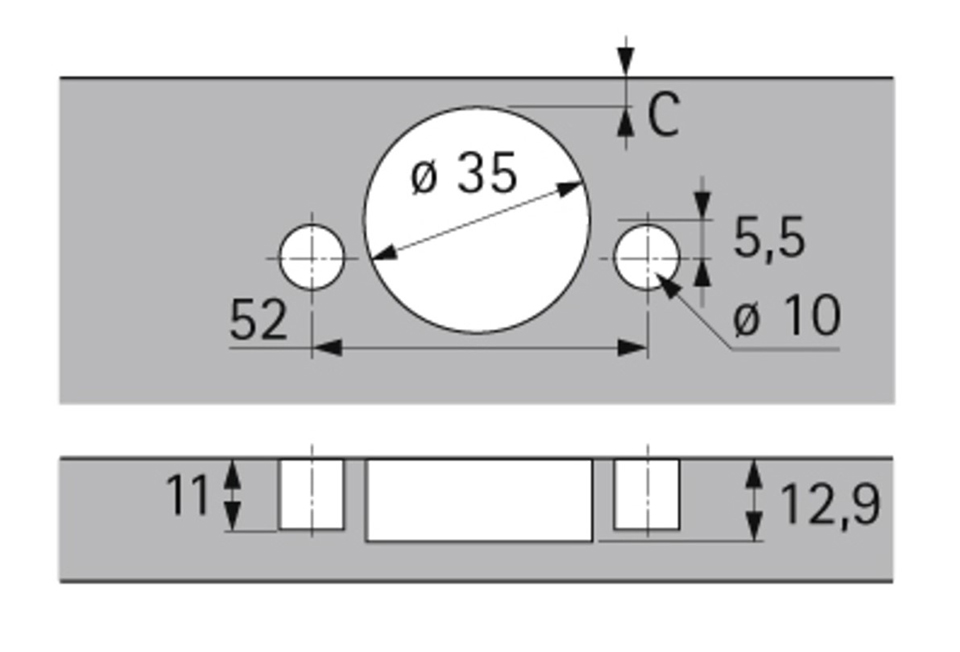

Always Sensys 8631 loaded for doors with a large thickness (15-32mm), with spring, without integrated damping. Opening angle 95°. Drill pattern TH 52x5.5mm, design of TH53 bowl, for pressing (diameter 10x11mm). Integrated loading adjustment +2/-2 mm, integrated depth adjustment +3/-2 mm. Height adjustment with mounting pad. Nickel-plated steel.
Do you know that for upper cabinets you can use hinges instead of hinges FREElift?
Parameters
| Parameter | Value |
|---|---|
| Mounting into material | Screw |
| Mounting on washer | To jam |
