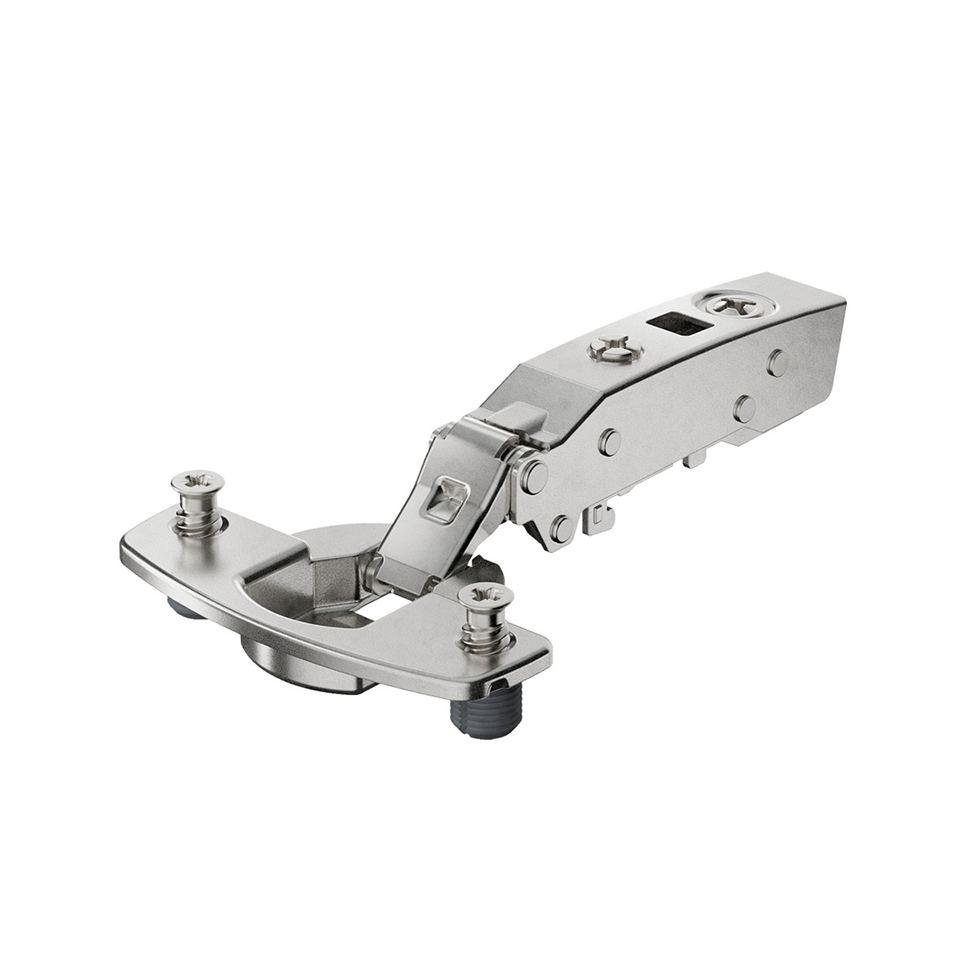

HETTICH 9094276 Sensys 8646i, Hinge base 12.5 mm, TH 58, loaded, SiSy
Product range code
372560
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

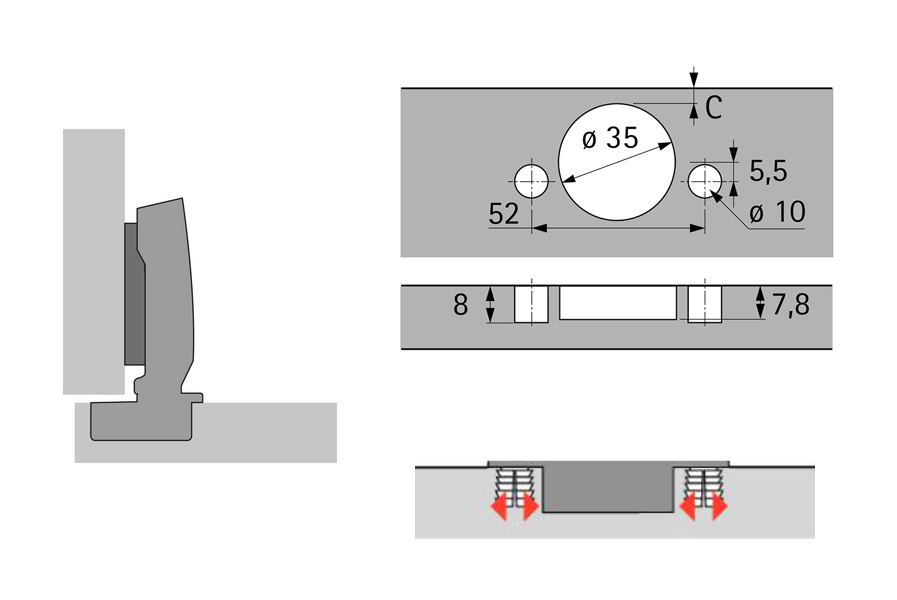

Suspension with clip technology and integrated damping. For door thickness 10 - 19 mm. Bowl diameter 35 mm. Bowl depth 7.8 mm. Integrated loading adjustment + 2 mm, - 2 mm. Integrated depth adjustment + 3 mm, - 2 mm. Height adjustment with mounting pad. Hanger arm material: nickel-plated steel. Hinge bowl material: nickel-plated steel. Attention: The fastening of the hinge to the door must be chosen depending on the material and quality and ensured by means of a suitable test. Recommended washers: D 1.5 for screw 106403 D 1.5 for euro 119240 Bowl cover no. 105408 and hanger cover no. 105425 are ordered separately.
You know that for upper cabinets you can replace hinges use hinges FREElift?
Parameters
| Parameter | Value |
|---|---|
| Angle of opening | 110 |
| Mounting into material | Dowel |
| Mounting on washer | To jam |
