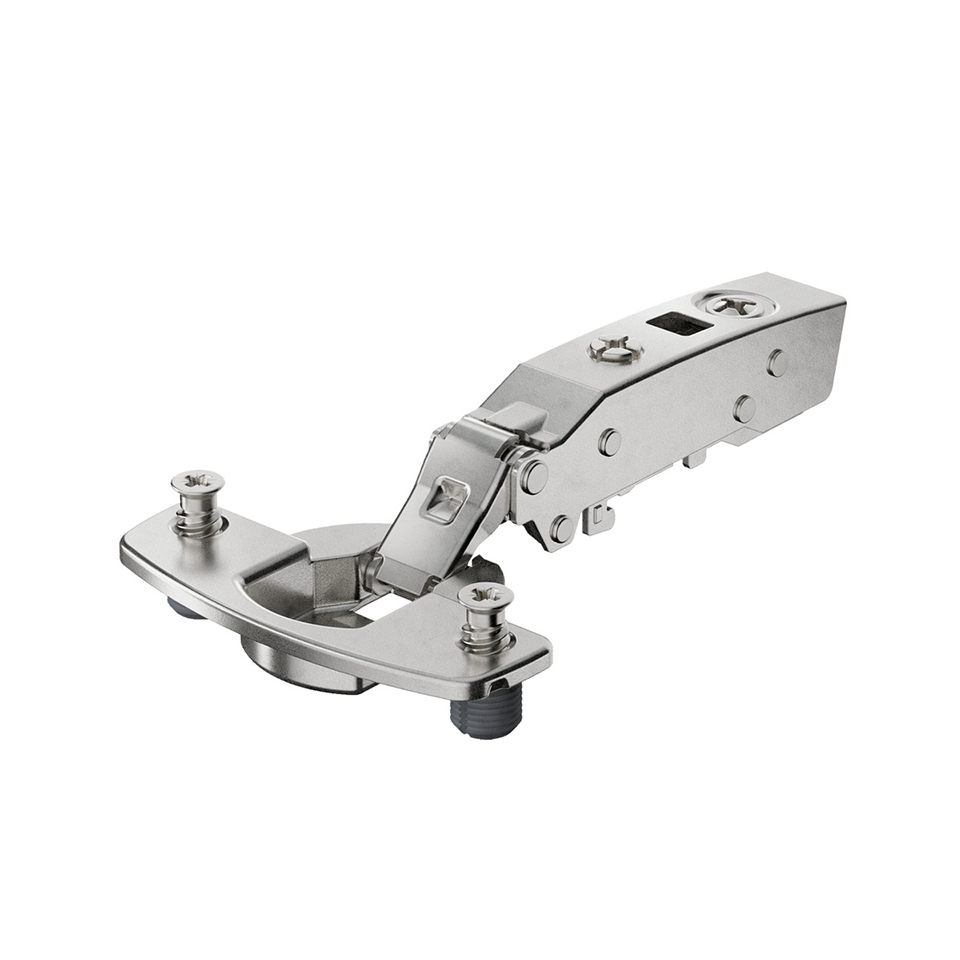

HETTICH 9094456 Sensys 8676 loaded 110° door 10mm, 52x5.5 PTO dowel
Product range code
399134
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

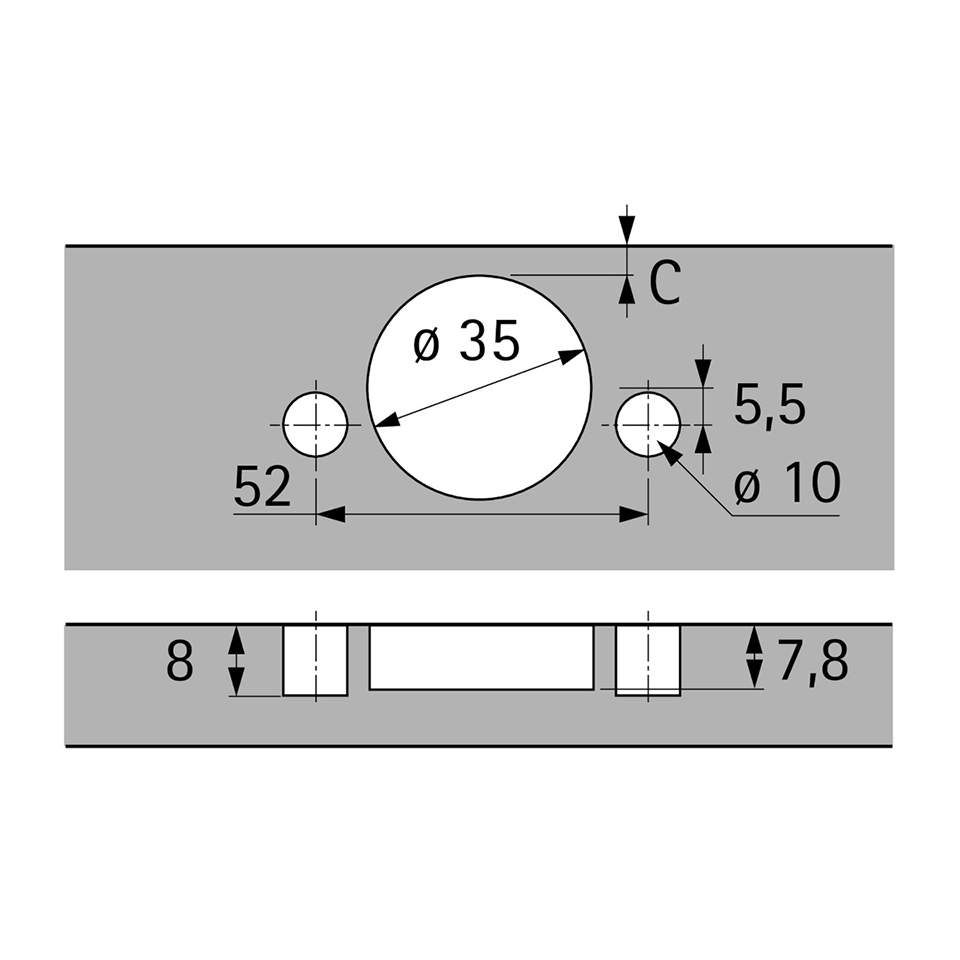

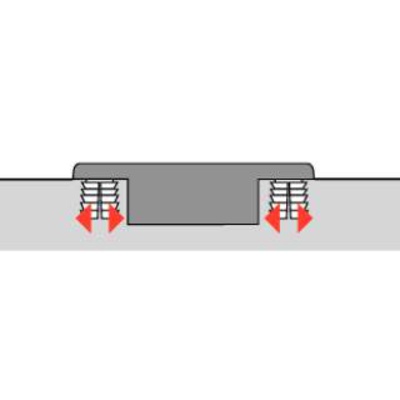

Hinge loaded without tension spring for thin doors with a thickness of 10-16 mm, mounting on spacer sleeves, suitable for P2O. Bowl depth 7.8mm. Washer D 1.5 for screw 106403, washer D 1.5 for euro 119240. Bowl cover 105408 and hanger cover 105425 are ordered separately.
You know that for upper cabinets you can use hinges instead of hinges < a href="https://www.demos24plus.com/content/wysiwyg/cz/Dokumenty/Katalogy/Brozury/Brozura_FreeFamily_Kesse.pdf" target="_blank">FREElift?
Parameters
| Parameter | Value |
|---|---|
| Angle of opening | 110 |
| Mounting into material | Screw |
| Mounting on washer | To jam |
