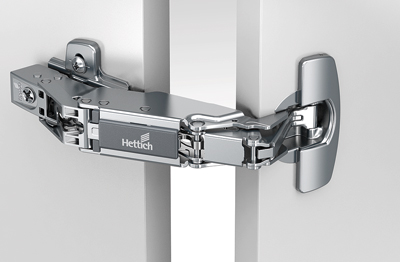

HETTICH 9099543 Sensys 8657i TH55 165° loaded SiSy
Product range code
264249
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Clip-on cup hinge loaded with integrated damping, quick installation Fix. Opening angle 165°. Door thickness 15 - 32 mm. The doors do not interfere with the lightness of the body, so the interior space is free for pull-out elements. Recommended washers: D 1.5 for screw 106403, D 1.5 for euro 119240.
Do you know that for upper cabinets you can use hinges instead of hinges FREElift?
Termín dodání od 8-ti do 21 dní.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Angle of opening | 165 |
| Mounting into material | Quick installation |
| Mounting on washer | To jam |
