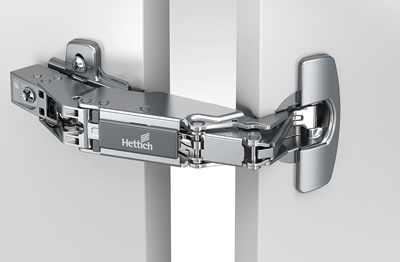

HETTICH 9099661 Sensys 8687 B12.5 TH53, loaded, P2O
Product range code
264279
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

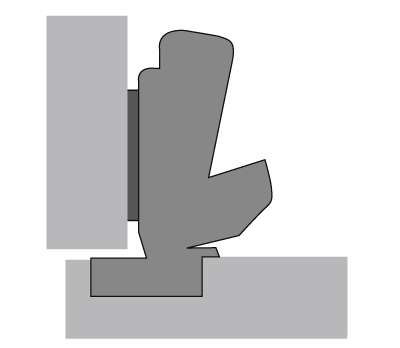

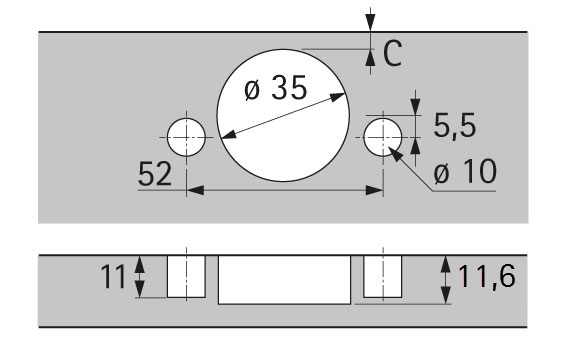

Hinge 165° with clip technology without closing spring P2O, loaded. For example, to use Push to open. Quality in accordance with EN 15570, level 3. For door thickness 15 - 32 mm. Bowl diameter 35 mm. Bowl depth 11.6 mm. Integrated loading adjustment + 2 mm, - 2 mm. Integrated depth adjustment + 3 mm, - 2 mm. Height adjustment with mounting pad. The opening angle can be reduced using optional accessories. A hinge with zero overlap.
Do you know that you can use hinges instead of hinges for upper cabinets FREElift?
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Angle of opening | 165 |

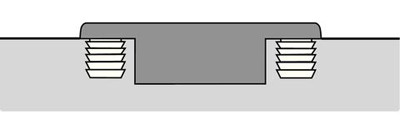

| Mounting into material | Dowel |
| Mounting on washer | To jam |
