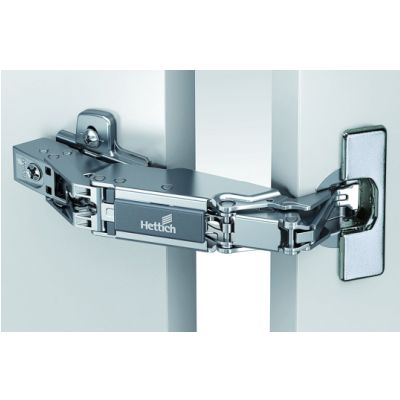

HETTICH 9099840 Intermat 8687 165° semi-loaded TB45 P2O screw

Product range code 300513
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Base price per pcs
9,9135 EUR 11,9953 EUR incl. VAT
> O On demand
Buy
Brand
Hettich
Group code
101001010203
Unit (piece)
pcs
Divisibility
1 pcs
Packaging
50 pcs
Description and parameters

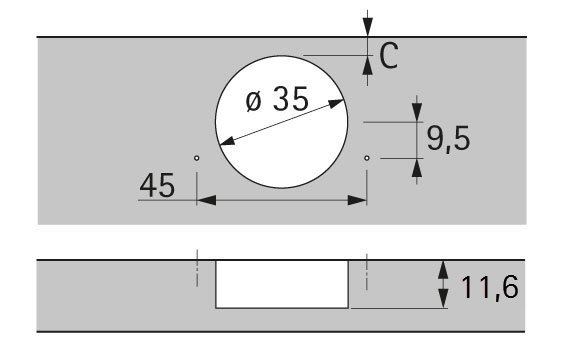

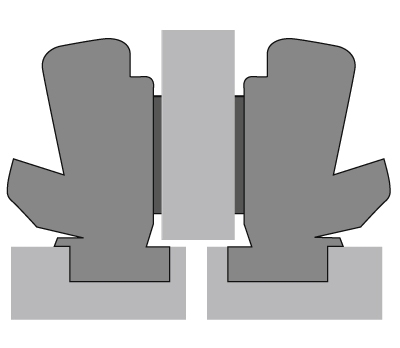

Sensys with a large opening angle, with an Intermat bowl, with zero overlap into the body clearance, without a closing spring (Sensys 8687) for doors without a handle, semi-loaded B 3mm. Opening angle 165°, BLUM drilling 45x9.5mm, to be screwed on. For door thickness 15-24mm. Bowl depth 11.6 mm. Integrated loading adjustment +/- 2mm, integrated depth adjustment +3mm/-2mm. Height adjustment with mounting pad. Nickel-plated steel / Nickel-plated zinc die-cast.


Do you know that you can use hinges for upper cabinets instead of hinges FREElift?

Termín dodání od 8-ti do 21 dní.

Related documents

Documentation

Parameters

Parameter Value
Angle of opening 165

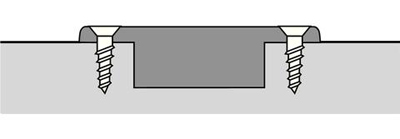

Mounting into material Screw
Mounting on washer To jam
