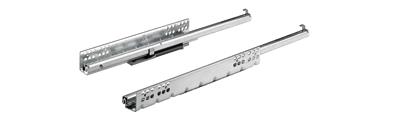

HETTICH 9105670 Quadro 25 350 EB20 SiSy P
Product range code
260340
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Partial extension for wooden drawers with grooved side RIGHT. Load capacity 25 kg. Silent System - a damper integrated into the drawer ensures soft and silent closing of the drawer. Push-in installation - the drawer is placed on the pull-outs and inserted into the body. Interchangeability - replacing a partial extension with a full extension can be done without changing the dimensions of the cabinet, body or front of the drawer, as well as the drilling. Connectors for wooden drawers with grooved sides are ordered separately No. 104547 1x and No. 104548 1x.
Termín dodání od 8-ti do 21 dní.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Length (mm) | 350 |
| Load capacity (kg) | 25 |
| Movement of extended drawer | With damping |
| Type of extension guide | Partial extension |
