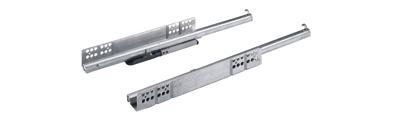

HETTICH 9111247 Quadro 25 320mm EB20 P2O L+P
Product range code
187549
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

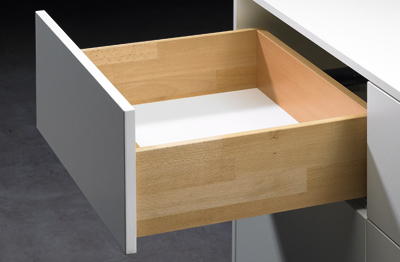

Partial extension for wooden drawers. Load capacity 25 kg. Push to open - to open the drawer, just press lightly on its front. Push-in installation - the drawer is placed on the pull-outs and inserted into the body. Interchangeability - replacing a partial extension with a full extension can be done without changing the dimensions of the cabinet, body or front of the drawer, as well as the drilling.
Termín dodání od 8-ti do 21 dní.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Length (mm) | 320 |
| Load capacity (kg) | 25 |
| Movement of extended drawer | Handleless |
| Type of extension guide | Partial extension |
