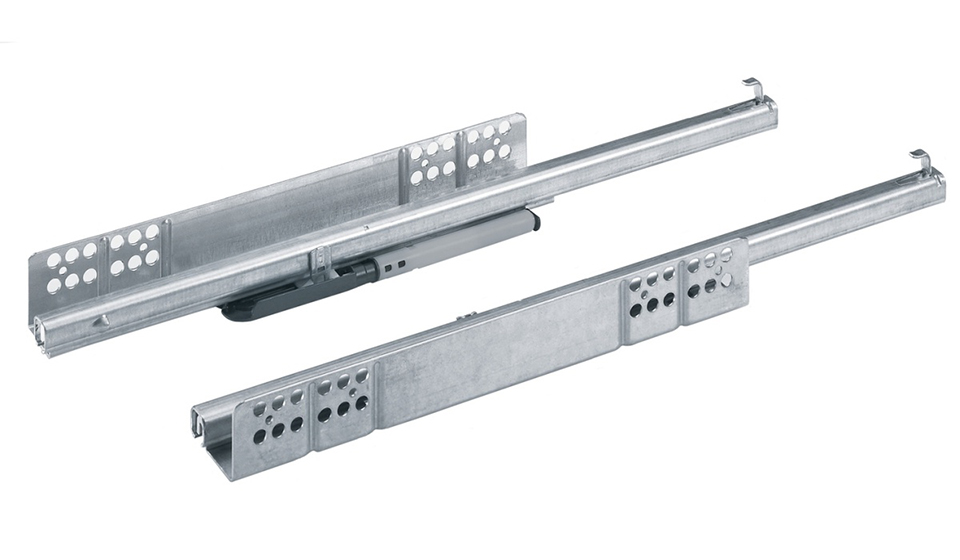

HETTICH 9135966 Quadro 25 500 mm EB20 P2O L+P
Product range code
353439
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Partial extension for wooden drawers. Load capacity 25 kg. Mounting on a pin - the drawer is placed on the drawers and pins. Push to open - to open the drawer, just press lightly on its front. Push-in installation - the drawer is placed on the pull-outs and inserted into the body. Interchangeability - replacing a partial extension with a full extension can be done without changing the dimensions of the cabinet, body or front of the drawer, as well as the drilling.
Parameters
| Parameter | Value |
|---|---|
| Length (mm) | 500 |
| Load capacity (kg) | 25 |
| Movement of extended drawer | Handleless |
| Type of extension guide | Partial extension |
