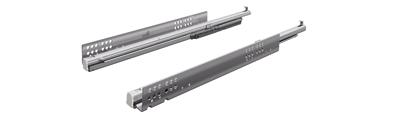

HETTICH 9135992 Quadro V6 480mm EB20 P2O L+P
Product range code
210080
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

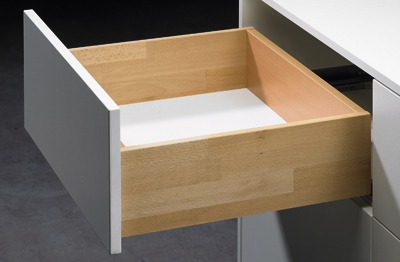

Full extension for wooden drawers. Load capacity 30 kg. Push to open - to open the drawer, just press lightly on its front. Push-in installation - the drawer is placed on the pull-outs and inserted into the body. Interchangeability - replacing a partial extension with a full extension can be done without changing the dimensions of the cabinet, body or front of the drawer, as well as the drilling. Connectors for wooden drawers with grooved sides are ordered separately No. 104547 1x and No. 104548 1x.
Termín dodání od 8-ti do 21 dní.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Length (mm) | 480 |
| Load capacity (kg) | 30 |
| Movement of extended drawer | Handleless |
| Type of extension guide | Full extension slide |
