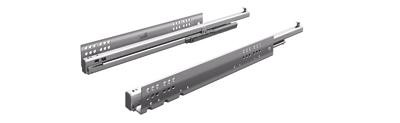

HETTICH 9136017 Quadro V6+ 550mm EB20 P2O L+P
Product range code
210105
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

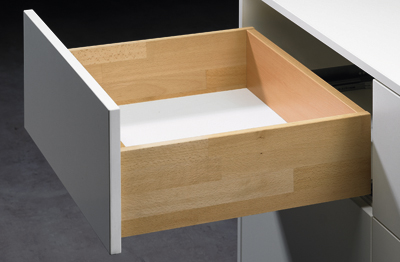

Full extension for wooden drawers. Load capacity 50 kg. Push to open - to open the drawer, just press lightly on its front. Push-in installation - the drawer is placed on the pull-outs and inserted into the body. Connectors for wooden drawers with grooved sides are ordered separately No. 136297 1x and No. 136298 1x.
Termín dodání od 8-ti do 21 dní.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Length (mm) | 550 |
| Load capacity (kg) | 50 |
| Movement of extended drawer | Handleless |
| Type of extension guide | Full extension slide |
