HETTICH 9209152 Change Top base for set 622-1272 mm
Product range code
300050
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

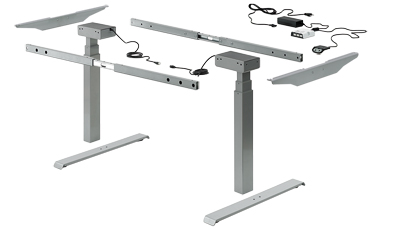

Complete table base adjustable in height using an electric motor, for table tops 800mm deep and 1200-2000mm wide. Height adjustment 622-1272mm (stroke 650mm). Traverse with width adjustment 1120-1900mm. Load capacity of max. 120 kg with an even load on the table (load capacity = payload + weight of the table top). With collision protection (this is not personal protection). Steel, powder coated, aluminum finish. Nominal voltage 230-240V/50Hz.
The set includes:
2x column
2x foot foot
2x traverse
1x control unit
1× manual switch
2× side traverse
1× power supply with 3m cable and angled plug
fixing material
Termín dodání od 8-ti do 21 dní.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Colour | Aluminium finish |
| Height adjustability | Electric |
| Height (mm) | 622 - 1,272 |
