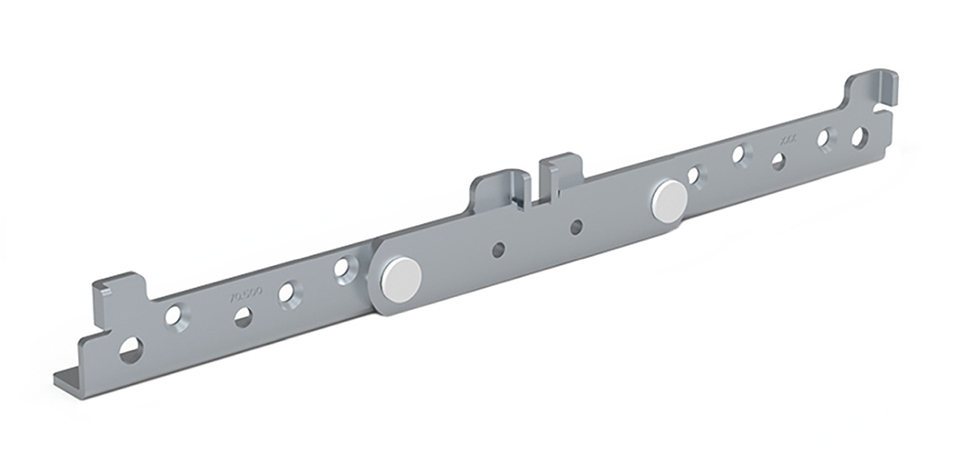

HETTICH 9240813 joint for folding slatted grates
Product range code
505843
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Folding joint for quick and easy connection of the two halves of the slatted grate without much effort. It is used for easy unfolding and folding of grid frames with a recommended width of up to 1000mm. Milling the grid is not necessary. Can be used for all types of grates, whether fixed or adjustable manually or motorized. The folding joint can be used on the right and left.
Warning:

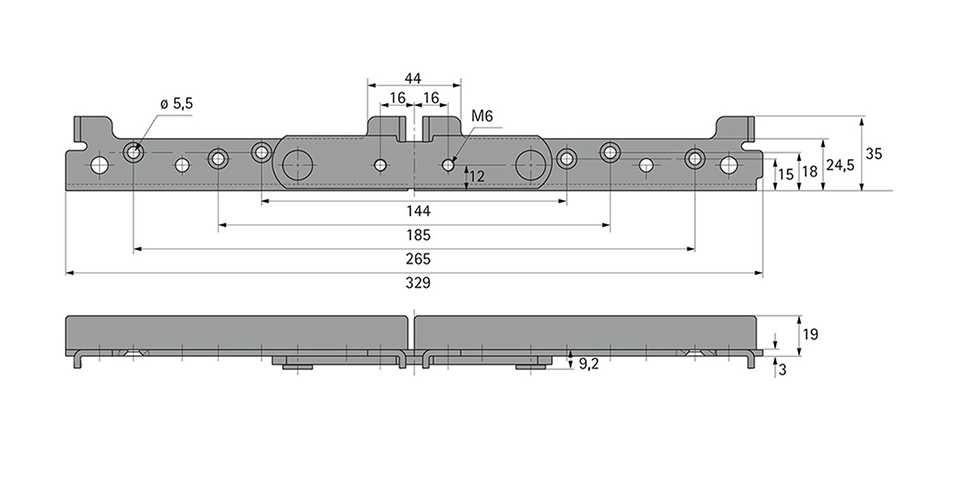

We recommend attaching the folding joint from the outside of the frame (thickness 20mm) using three screws (length 20mm) and two more with countersunk head M6x30mm.
