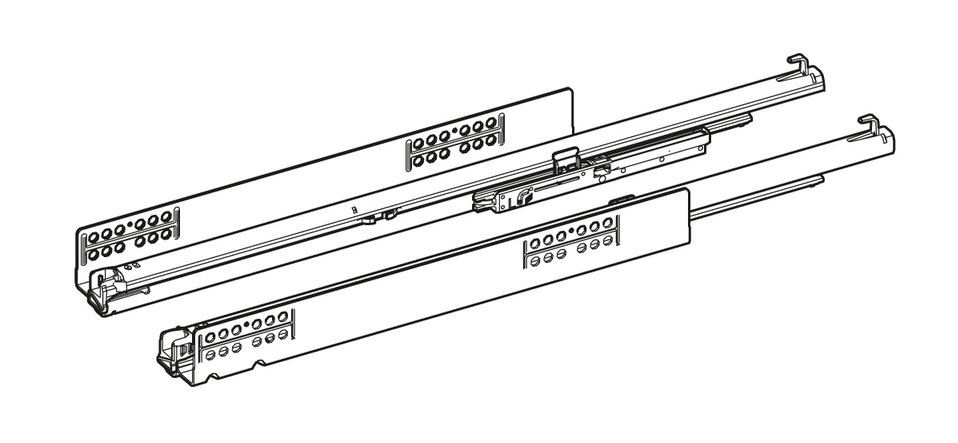

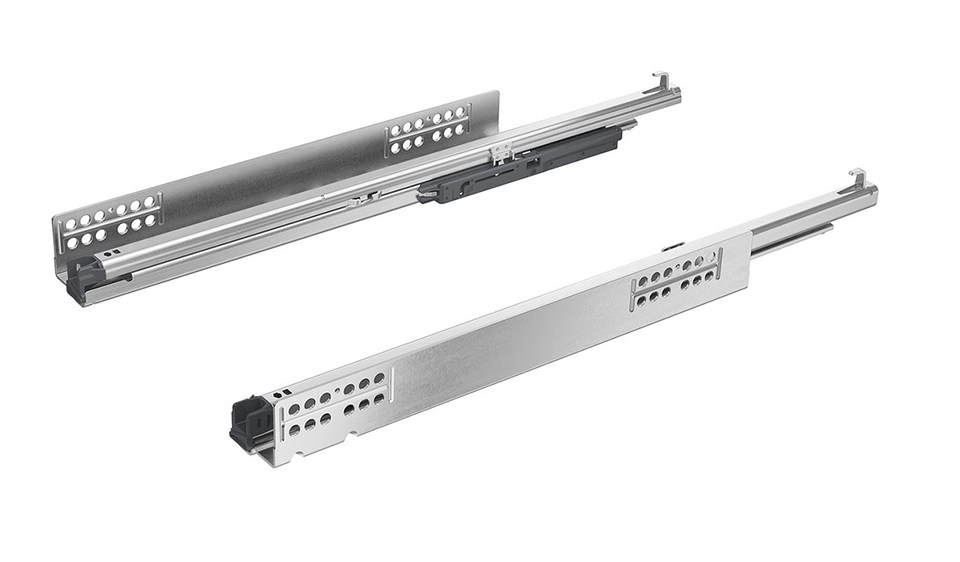

HETTICH 9256892 Quadro YOU 500 30kg SiSy L+P
Product range code
422190
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Full extension for use with AvanTech YOU drawers and with wooden drawers and connectors, integrated Silent System damping. Push to open Silent can be optionally added, must be ordered separately (397832 for 8-20kg; 397833 for 10-30kg; 318279 synchronization rod). Couplings for use with wooden socket (397828) must be ordered separately.
Parameters
| Parameter | Value |
|---|---|
| Length (mm) | 500 |
| Load capacity (kg) | 30 |
| Movement of extended drawer | With damping |
| Type of extension guide | Full extension slide |
