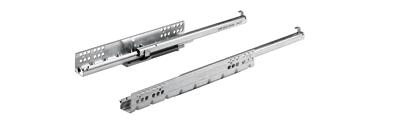

HETTICH 9267410 Quadro 25 500 EB23 part SiSy L
Product range code
315842
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Partial extension Quadro left, length 500 mm. Reach with damped reach. For the strength of drawer sides up to 19 mm. It is necessary to add the front holder 104547.
Related documents
Assembly instructionsParameters
| Parameter | Value |
|---|---|
| Length (mm) | 500 |
| Load capacity (kg) | 25 |
| Movement of extended drawer | With damping |
| Type of extension guide | Partial extension |
